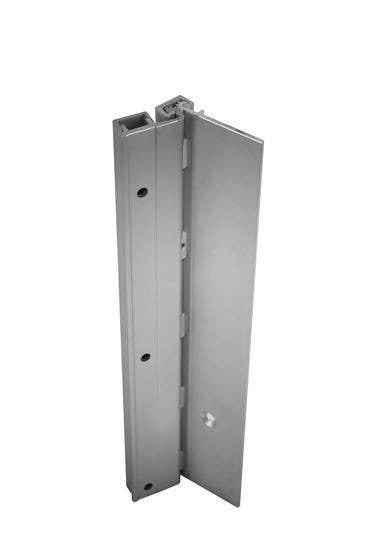

ABH A520HD Aluminum Continuous Geared Hinges Half Mortise Model 5/64" Inset
$124.80
$208.00
40% Off
As low as:
- Model:
-
A520HD
This item ships via LTL (Less than truckload) freight.
Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote - Half surface, heavy duty
- 5/64" door inset
- 48" door width maximum
- 450 lbs. door weight maximum
- Fasteners
- 12-24 × 7/8" undercut self drilling, thread-forming tek machine screws for frame and 1/4-20 sex bolts and shoulder bolts for door
- Standard Lengths
- 79", 83", 85", 95" and 120"
- Finishes
- Clear, dark bronze and black anodized
- Fire Rating
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Specifiy "FR" option for 3 hour rating) or 60 minutes (Specifiy "FR" option for 90 minute rating)
- "PT" - Cut-out Prep for Power Transfer
- "CUT" - Cut to Custom Length
- "SPLICE" - Spliced Hinge
- "HT" - Hopsital Tip
- "TR" - Tamper Resistent
- "SEC" - Fasteners
- "FR" - Fire Studs
- "SC" - School Cap
- "DD" - Dutch Door Prep
- "SL" - Sheared Leaf
- "SNB for 1-3/8"" Shortened bolts to accomodate a 1-3/8" thick door
- "CUSTOM HOLE" - Custom hole locations
- "NO HOLE"
- "CUSTOM FINISH"
Details: ABH A520HD Aluminum Continuous Geared Hinges Half Mortise Model 5/64" Inset
Overview
Options
Downloads
CUT SHEETS
TEMPLATES
CROSS REFERENCE CHARTS
