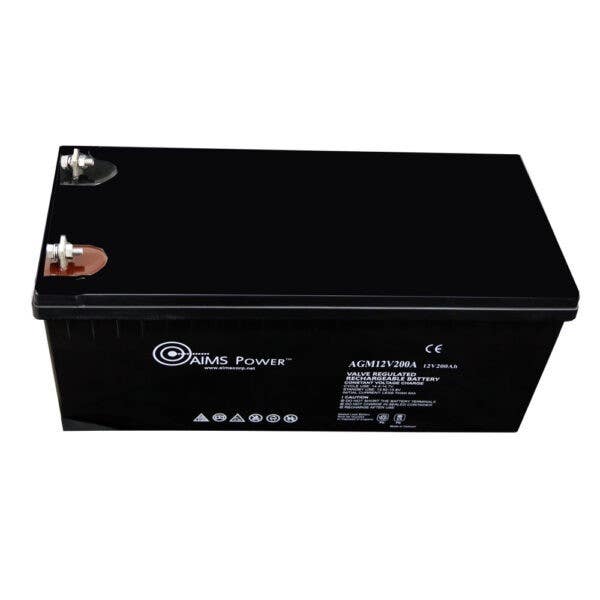

Aims Power AGM12V200A AGM 12V 200Ah Deep Cycle Battery Heavy Duty
$379.00
- Model:
-
AGM12V200AItem is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Aims Power AGM12V200A AGM 12V 200Ah Deep Cycle Battery Heavy Duty
This 12V AGM battery is a heavy duty, deep cycle battery ideal for back-up power, golf carts and stored power applications. Affordable without compromising quality, this battery will provide power for years. This heavy duty rechargeable battery is made of AGM lead lead dioxide technology. The extra thick lead plates in this battery allow for a deeper discharge with less harm to the battery and provides 20% more charge/discharge cycles compared to other AGM batteries. AGM batteries have less instant energy, but greater long-term energy delivery.
Features
- Heavy duty compared to other AGM batteries - 20% more cycles
- Mount in any orientation.
- Computer designed lead calcium tin alloy grid for high power density
- AGM is ideal for back up and stored power applications
- Convenient carry handles
- Long service life float or cyclic applications
- Maintenance-free operation
- Thick plates within the battery to limit fluid expansion during freezing
- Low self discharge
- Copper terminals
- 5 year warranty from manufacturer defects
Specifications
- Nominal Voltage
- 12V
- Number of cell
- 6
- Nominal Capacity
- 77F(25C)
- 20 hour rate
- (10A 10.8V) 200Ah
- 10 hour rate
- (18.7A 10.8V) 187Ah
- 5 hour rate
- (35.8A 10.5V) 179Ah
- 1 hour rate
- (126A 9.6V) 126Ah
- Fully Charged battery
- 77F(25C) 4mOhms
- Self-Discharge
- 3% of capacity declined per month at 20C(average)
- Max. Discharge Current
- 77F(25C) 1000A(5s)
- Short Circuit Current
- 3300A
- Charge Methods
- Constant Voltage Charge 77F(25C)
- Cycle use
- 14.4-14.7V
- Maximum charging current
- 30A
- Temperature compensation
- -30mV/oC
- Standby use
- 13.6-13.8V
- Size(inch)
- 20.5" L × 8.78" H × 9.37" W
- Weight(lb)
- 138
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
