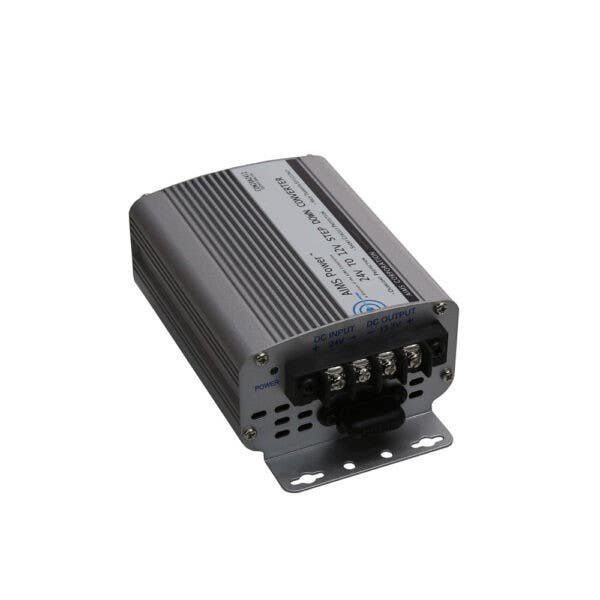

Aims Power CON20A2412 20 Amp 24V to 12V DC-DC Converter
$84.00
- Model:
-
CON20A2412
Item is normally in stock and ships out within 1-2 Business days (excluding transit time).
If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Aims Power CON20A2412 20 Amp 24V to 12V DC-DC Converter
This compact step-down DC-DC converter has an input voltage of 24 VDC nominal (range 20 VDC to 37 VDC) to a highly regulated output voltage of 12 VDC nominal at 20 Amps. This a non-isolated 20 amp DC-DC converter and is made for use in negative ground systems. These units have CE EN61000-6-3:2007+A1:2011 and CE EN61000-6-1:2007
Features
- 20 Amp 24 volt to 12 volt dc to dc converter
- Green LED on front panel to confirm power on
- Terminal block for DC input/output
- Over Temperature protection
- Over Load protection
- DC Input Low Battery Shutdown
- DC Input High Battery Shutdown
- DC Output Short Protection
- DC Output Over Current Protection
- DC Output Over Voltage Protection
- Transformer based
- Aluminum case for optimal cooling
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
- CE EN61000-6-3:2007+A1:2011
- CE EN61000-6-1:2007
Specifications
- DC Input Voltage
- 20-37 Vdc
- DC Output Voltage
- 12.5-13.5 Vdc
- Output Current
- 20 amps
- Output Current Max
- 24 amps
- Conversion Effiency
- More than 91%
- DC Input Low Battery Shutdown
- 18 +/- 1 V
- DC Input High Battery Shutdown
- More than 38Vdc
- DC Input Over Current Protection
- 15A Fuse
- DC Input Polarity Protection
- Fuse Protected
- Over Temperature Protection
- 150 +/- 5 degrees F
- DC Output Short Protection
- Yes
- DC Output Over Current Protection
- 24 amps
- DC Output Over Voltage Protection
- TVS Diode
- Unit Weight
- 0.97 lbs
- Unit Size L × W × H
- 5.91 × 3.39 × 2.2 inches
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
