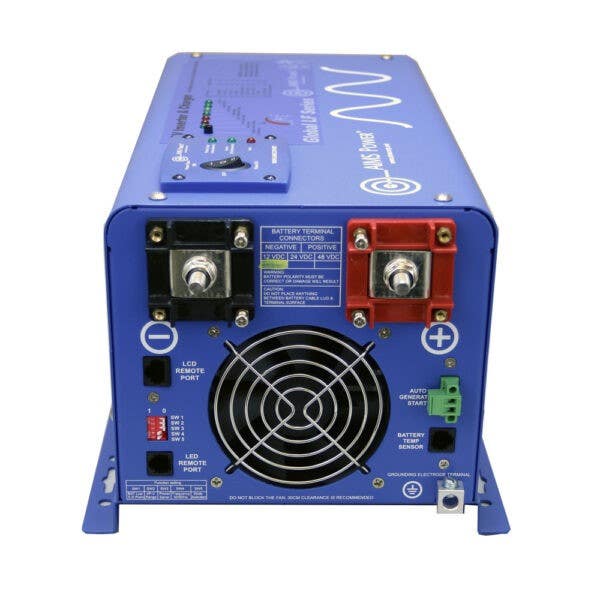

Aims Power PICOGLF20W12V120VR 2000 Watt Pure Sine Inverter Charger with Transfer Switch
$1,017.00
- Model:
-
PICOGLF20W12V120VRItem is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Aims Power PICOGLF20W12V120VR 2000 Watt Pure Sine Inverter Charger with Transfer Switch
he 2000 watt 12 volt low frequency AIMS Power inverter charger transforms DC (direct current) power, stored by batteries, into AC (alternating current) electricity that can be used to run most all tools and appliances. This inverter also has a built in AC-to-DC battery converter charger and transfer switch, which allows users to recharge their battery bank from an AC source such as a fuel-powered generator, shore power or a regular outlet at home.
Features
- 2000 watt low frequency inverter
- 6000 watt surge for 20 seconds 300% surge capability
- Battery Priority Selector
- AC direct connect terminal Block
- Marine coated and protected
- Multi stage smart charger 70 Amp for gel, AGM, lead and lithium LiFePO4
- GFCI - 15 amps
- Remote panel available
- Auto frequency
- 10msec typical transfer time
- Selectable 25W power save mode (hibernation)
- 7 battery type settings for charger
- Automatic transfer switch
- Selectable Charge setting based on battery type
- Adjustable charge current off-20%-100%
- Four Stage Smart Charger
- Transfer Switch Specifications
- Over Charge Protection Shutdown 15.7V
Specifications
- Continuous Output Power
- 2000 Watts
- Surge Rating
- 6000 Watts (20 Seconds)
- Output Waveform
- Pure Sine/Same as input (Bypass Mode)
- Nominal Efficiency
- More than 88% (Peak)
- Line Mode Efficiency
- More than 95%
- Output Frequency
- 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
- Typical Transfer Time
- 10ms (Max)
- THD
- less than 10% DC
- Ambient Operating Temperature
- 14 degree Fahrenheit to 122 degree Fahrenheit (-10 Degree Celsius to 50 Degree Celsius)
- Nominal Input Voltage
- 12.0Vdc
- Minimum Start Voltage
- 10.0Vdc
- Low Battery Alarm
- 10.5Vdc-11.0Vdc
- Low Battery Trip
- 10.0Vdc-10.5Vdc
- High Voltage Alarm
- 16.0Vdc
- Low battery Voltage Restart
- 13.3Vdc
- Idle Consumption
- 28 Watts
- Power Saver Mode Idle Consumption
- 12.7 watts
- Output Voltage
- Depends on battery Type
- Charger Rate
- 70A
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
