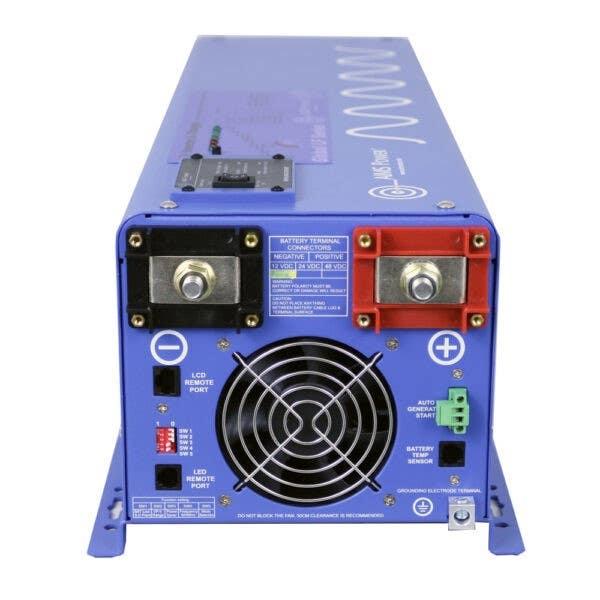

Aims Power PICOGLF40W12V120V 4000 Watt Pure Sine Inverter Charger 12Vdc to 120Vac Output

$1,454.00

Model:: PICOGLF40W12V120V

Item is normally in stock and ships out within 1-2 Business days (excluding transit time).

If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Aims Power PICOGLF40W12V120V 4000 Watt Pure Sine Inverter Charger 12Vdc to 120Vac Output

The most popular feature of this unit is the direct connect terminal block, which allows a 300 percent surge capacity for up to 20 seconds. When using the terminal block, this inverter peaks at 12000 watts with the power to run many tools and appliances with a startup surges, such as a refrigerators, freezers, microwaves and blow dryers.

Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current. The inverter accepts 12 volts DC, which makes it great for vehicle upfitting as well as boat and RV applications that use a 12 volt battery system. The inverter outputs 120 volts AC.This 4000 watt inverter charger produces a pure sine wave, which some appliances require for use. So it can run laser jet printers, computers, televisions, CPAP machines and other medical equipment.

Features

4000 watt low frequency inverter
12000 watt surge for 20 seconds 300% surge capability
Battery priority selector
AC direct connect terminal bock for hardwire
Marine coated and protected
Multi stage smart charger 100 Amp
Charges lithium LiFePO4, GEL, AGM and lead batteries. We recommend to check battery charging specifications for all batteries.
Remote panel available
Auto frequency
10msec typical transfer time
Selectable 25W power save mode (hibernation)
7 battery type settings for charger
Automatic transfer switch

Specifications

Continuous Output Power: 4000 Watts
Surge Rating: 12000 Watts (20 Seconds)
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Nominal Efficiency: More than 88% (Peak)
Line Mode Efficiency: More than 95%
Output Frequency: 50Hz +/- 0.3Hz / 60Hz +/- 0.3Hz
Typical Transfer Time: 10ms (Max)
THD: less than 10% DC
Ambient Operating Temperature: 14 degree Fahrenheit to 122 degree Fahrenheit (-10 Degree Celsius to 50 Degree Celsius)
Nominal Input Voltage: 12.0Vdc
Minimum Start Voltage: 10.0Vdc
Low Battery Alarm: 10.5Vdc-11.0Vdc
Low Battery Trip: 10.0Vdc-10.5Vdc
High Voltage Shutdown: 16.0Vdc
Low Battery Voltage Restart: 13.3Vdc
Idle Consumption: less than 3.47 amps DC
Power Saver Mode Idle Consumption: less than 0.53 amps DC
Output voltage: depends on battery type
Charger rate: 115A
Adjustable charge current: off-20%-100%

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use

Downloads

AIMS Power 4000 Watt Inverter Charger - PICOGLF40W12V120V

Aims Power Warranty

()

()
