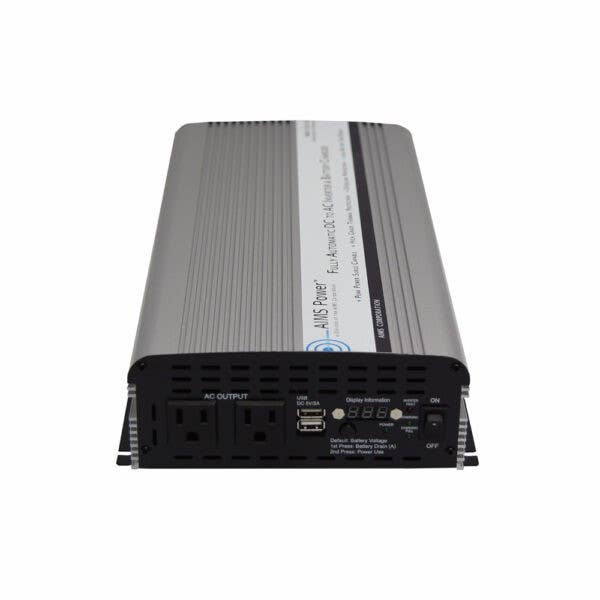

Aims Power PWRIC1500W 1500 Watt Power Inverter with Battery Charger and Transfer Switch

Aims Power
$379.00
Model:
PWRIC1500W
Item is normally in stock and ships out within 1-2 Business days (excluding transit time).
If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Details: Aims Power PWRIC1500W 1500 Watt Power Inverter with Battery Charger and Transfer Switch

Do you need a power inverter to supply backup power for your home or an inverter charger for your RV or boat. This AIMS 1500-watt modified sine power inverter has been designed to meet your backup or mobile power inverter needs.Our 1500-Watt Power Inverter with Battery Charger and Transfer Switch has a built-in transfer switch that allows you to plug it into a regular AC outlet in your home. When the power goes out, your lights, electronic equipment and appliances will stay on. That's because this power inverter automatically switches to run off your battery bank.The charger built into this power inverter outputs 10 DC amps of charge. That will keep your batteries fully charged, so if and when the power does go out, your batteries will be ready to supply power to this backup power inverter.The most common use for this modified sine inverter charger is to back up sump pumps in your basement. That can prevent flooding and other problems when a storm hits and knocks out your utility's power while swamping your neighborhood with rain.

Features

  • 1500W max continuous power
  • Modified sine wave
  • Green LED indicates ac input power is functional and battery is charging
  • Transfer switch automatically switches when city power is lost
  • Red LED indicates ac input power is not functional and battery is being used
  • Dual ac receptacle
  • Over Temperature protection
  • Over Load protection
  • Single cooling fan operation
  • AC cable included to connect to shore power
  • Internally fuse protected
  • AC output short circuit protection
  • Aluminum case for optimal cooling
  • Pre-slotted mounting plate
  • Instruction manual
  • UL maximum recommended per outlet 1500W
  • Free 1 year tech support
  • 3-10 sec transfer time between loosing ac input power and switching to providing ac output power
  • 1 Year Warranty Parts and Labor

Specifications

Continuous output power
1500 Watts 3000 Watt Surge
Surge power capability (peak power)
3000 Watts
DC input / operating voltage
10 to 15 Volts
Output voltage
120 Volts ac
Output wave form
modified sine wave
Output frequency
60 Hz +/- 1 Hz
Battery low voltage alarm
10.5 +/- 0.5 Volts
Battery low voltage shutdown
10.0 +/- 0.5 Volts
Efficiency
85-90%
No load draw
.6 amps
AC amps
13
DC amps
125
AC Output Socket Type
dual Type 2 -3 prong
High input voltage protection
15V
Low input voltage shutdown
10V
Product size (L × W × H)
15.5 × 7.75 × 3.25
Weight
7 lbs

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use
