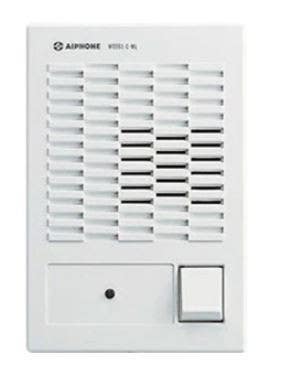

Aiphone C-ML/A Master Station For C-123L/A, White
$123.20
$176.00
30% Off
- Model:
-
C-ML/AItem is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Aiphone C-ML/A Master Station For C-123L/A, White
Master Station for C-123L/A, Includes DAK-2S
Features
- Push-to-talk door answering with door release
- Adjustable communication volume
- Automatically turns off after 20 seconds
- Battery or DC power supply
- Optional door stations for replacement of C-D: any LE or LS Series
Specifications
- Power Consumption
- 85mA (6V DC) max.
- Output
- 100mW
- Type of communication
- Push-to-talk (simplex)
- Door Release Contact
- N/O dry contact, 30V AC/DC 1A
- Mounting
- Wall mount
- Wire Type
- 2-cond., overall shield - use Aiphone ;822202(22AWG) or ;821802(18AWG)
- Wire Distance
- Door Station to farthest Master Station: 245'(22AWG), 590'(18AWG)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
