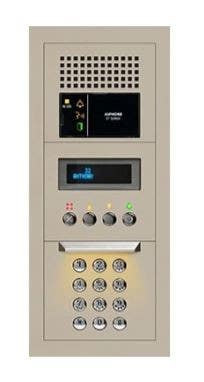

Aiphone GTA-DESB 10-Key Audio Entrance Panel Kit
$744.80
$1,064.00
30% Off
- Model:
-
GTA-DESBItem is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Aiphone GTA-DESB 10-Key Audio Entrance Panel Kit
10-Key Audio Entrance Panel Kit
Features
- Contains GT-DB audio module and GT-NSB digital display and directory
- GT-10K keypad for direct dialing and access control
- Includes GF-3F frame and the GF-3B flush back box
- VFD screen displays a customizable greeting message, tenant directory, and system status
- Surface mount the GTA-DESB with the steel GT-103HB
Specifications
- Power Source
- 24V DC, use specified number of PS-2420UL per system configuration
- Communication
- Hands-free from entrance panel to tenant station
- Capacity
- Max. 16 Entry panels per system; Max. 4 Concierge stations per syste;Max. 500 Tenant stations per syste; Max. 4 Tenant stations per unit
- Wire
- 2-conductor, PE insulation, Aiphone ;872002, 2-conductor PE insulated, non-shielded, 11.05 pf/ft (Audio)
- Wiring Distance
- GT-BC to farthest entrance: 980' ; GT-BC to farthest tenant (audio): 980'
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
