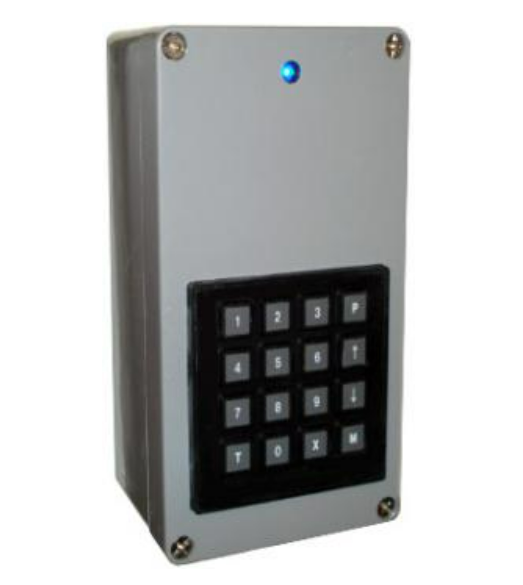

Alpha Communication AA926 Industrial indoor/outdoor Surface Master Station
$1,305.10
$2,175.20
40% Off
- Model:
-
AA926
Item normally ships out within 1-2 Weeks (excluding transit time).
If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Alpha Communication AA926 Industrial indoor/outdoor Surface Master Station
The AA926 industrial master station is designed for indoor or outdoor use and is weather resistant.The AA926 provides for either handset or loudspeaking use, when receiving a call. For handset use, add the optional (model GD509) handset. The optional model 306-8 external speaker can also be used with the AA926.The AA926 is designed to work with the RM5000EX and/or CB901EX series microprocessor intercom systems.
Features
- Handsfree/loudspeaking (built in 20 watt amplifier)
- Optional handset model GD509
- Weather resistant enclosure
- Push To Talk button
- Microphone Mute button
- Keypad volume control
- Station 'On' lamp
- Call indication LED
- Full keypad with access to all system functions
- External inputs: Direct Access, PTT and Cancel
- External output: Strobe control relay
- Made in USA
Specifications
- Dimensions
- 5.50"W x 9.85"H x 1.60"D
- Operating Voltage
- 20-27V DC / 24VAC
- Frequency Range
- 300 - 5000 Hz
- Audio
- Galvanic line
- Speech Level
- normal: -12 dBm
- Speech Level
- max + 4dBm
- Tone Signalling Level
- DTMF signaling -10 dBm External Loudspeaker
- Central Exchange Connections
- Terminated in RJ45 connector, 1 twisted pair (UTP) for audio/signaling and 1 twisted pair (UTP) for power.
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
