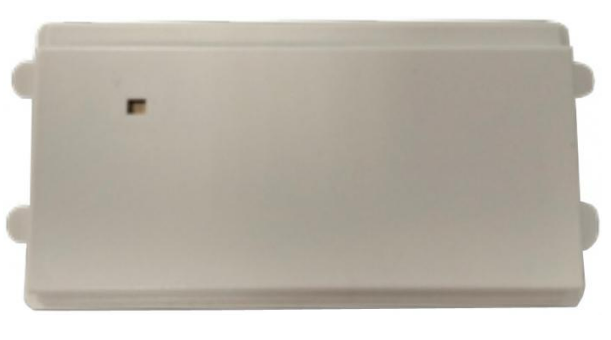

Alpha Communication EL4503/NFC Reader Module for GB2 and G2+ System

Alpha Communications
$95.35
$158.90
40% Off
Model:
EL4503/NFC
Item normally ships out within 1-2 Weeks (excluding transit time).
If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
mail Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Details: Alpha Communication EL4503/NFC Reader Module for GB2 and G2+ System

The Alpha Communications / Golmar EL4503/NFC Reader Module is used exclusively with the GB2 and/or G2+ series systems. The EL4503/NFC is designed to perfectly fit into the Nexa series door panels (Aluminum and St. Steel/Inox versions).The EL4503/NFC allows for stand alone access control through the NFC reader, in a reduced size.

Features

  • Two programming methods; basic, through local dip-switch (confirmations by means of luminous and acoustic indicators), or advanced, using Access Control manager software for Android
  • The NFC/IN installer card is required for advanced programming
  • Up to 2,000 user cards, stored in up to 32 user groups
  • Smartphones with NFC technology can work with this access control using the OpenGo application for Android
  • Three types of user cards are available, depending on the number of uses; permanent until deactivated (NFC/US), rechargeable for one use (NFC/1U), and programmable for multiple uses (NFC/MU)
  • User access available in keychain version model# TAGNFC/US
  • Quick connect terminals for easy connection
  • Two outputs voltage-free (with relay) with programmable time (NO, C, NC) plus panic output
  • Two inputs for external pushbutton activation relay (PL1) and (PL2)
  • Programmable activation time (3 to 99 seconds)
  • Requires 12VAC power supply
  • Typically used with the N3001/AL (Aluminum) and NX3001 (St. Steel) Nexa modules

Applications

  • Public Buildings & Facilities
  • Commercial & Industrial Buildings
  • Government & Military Facilities
  • Retail & Strip Malls
  • Multifamily & Mixed-Use

Downloads

Product Specification

warranty Alpha Communications Warranty
