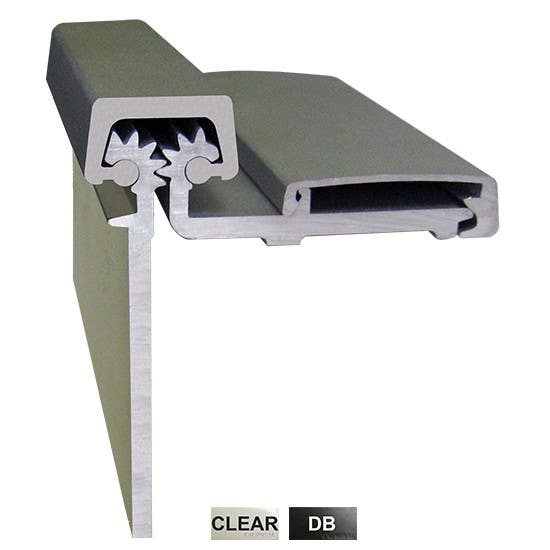

Cal-Royal CRHD78 Geared Aluminum Continuous Hinge
$151.07
$201.42
25% Off
As low as:
- Model:
-
CRHD78
This item ships via LTL (Less than truckload) freight.
Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Cal-Royal CRHD78 Geared Aluminum Continuous Hinge
Dimensioning Door and Frame ---- Full Concealed Mortised Models CRHD78 1110, CRHD78 1120, CRHD78 2240
The Above models are primarily used for new doors and frames. Both leaves are fully Mortised. They can also be used on renovations for a new door with an existing frame or an existing door with a new frame. These hinges will cover existing standard full Mortise hinge preps.
REQUIRED CLEARANCE
| Standard | Metric | |
|---|---|---|
| Single Doors (Square Edged) | ||
| A. Thickness of Hinge | 5/16" (10/32") | 8.0 mm |
| B. Allowances for frame irregularities | 1/32" (1/32") | 0.8 mm |
| C. Single Door Clearance on Lock side | 1/8" (4/32") | 3.2 mm |
| Total | 15/32" | 12.0 mm |
| Single Doors (Beveled Edged) | ||
| A. Thickness of Hinge | 5/16" (10/32") | 8.0 mm |
| B. Allowances for frame irregularities | 1/32" (1/32") | 0.8 mm |
| C. Single Door Clearance on Lock side | 1/8" (4/32") | 3.2 mm |
| D. Allowance for Beveled edge | 1/32" (1/32") | 0.8 mm |
| Total | 16/32" | 12.8 mm |
| Pairs of Doors (Square Edged) | ||
| A. Thickness of Hinge | 5/16" (10/32") | 8.0 mm |
| B. Allowances for frame irregularities | 1/32" (1/32") | 0.8 mm |
| C. Recommended Edge to Edge clearance | 3/16" (6/32") | 4.8 mm |
| D. Second allowance for frame irregularities | 1/32" (1/32") | 0.8 mm |
| E. Second hinge thickness | 5/16" (10/32") | 8.0 mm |
| Total | 28/32" | 22.4 mm |
| Pairs of Doors (Beveled Edged) | ||
| A. Thickness of Hinge | 5/16" (10/32") | 8.0mm |
| B. Beveled Edge Allowance | 1/32" (1/32") | 8.0mm |
| C. Allowances for frame irregularities | 1/32" (1/32") | 8.0mm |
| D. Recommended Edge to Edge Clearance | 3/16" (6/32") | 4.8 mm |
| E. Second Allowance for frame irregularities | 1/32" (1/32") | 8.0mm |
| F. Second allowance for beveled edge | 1/32" (1/32") | 8.0mm |
| G. Second Hinge Thickness | 5/16" (10/32") | 8.0 mm |
| Total | 30/32" | 24 mm |
Templates and Instructions
| CAL-ROYAL | ROTON | PEMKO | MARKAR | MCKINNEY | ZERO | STANLEY | ABH | SELECT |
|---|---|---|---|---|---|---|---|---|
| CRHD781120 | 780-112HD | FMSLFHD | FM2000 | MCK12HD | 910DB | 661HD | A110HD | SL11HD |
| CRHD782240 | 780-224HD | FMHD | FM2001 | MCK25HD | 914DB | 662HD | A240HD | SL24HD |
| CRHD781570 | 780-157HD | FSCPHD | --- | MCK58HD | 935DB | 664HD | A570HD | SL57HD |
| CRHD782100 | 780-210HD | FSHD | FM2009 | MCK22HD | 930DB | 665HD | A210HD | SL21HD |
| CRHD781110 | 780-111HD | FMSLIHD | --- | MCK-14HD | --- | --- | A111HD | SL18HD |
| CRHD780530 | 780-053HD | --- | --- | --- | 925DB | --- | A530HD | SL53HD |
| CRHD780570 | --- | --- | FS 2002 | --- | --- | --- | A571HD | SL60HD |
