Cal-Royal MR9800 / FMR9800 Mortise Lock Exit Device, Grade 1

Name: Cal-Royal MR9800 / FMR9800 Mortise Lock Exit Device, Grade 1
Brand: Cal-Royal
SKU: MR9800 / FMR9800
Price: 787.61 USD
Availability: InStock

$787.61

$1,312.68

40% Off

Model:: MR9800 / FMR9800; Must Order Trim Separately

Item normally ships out within 1-2 Weeks (excluding transit time).

If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Fire Rating

Door Width

Function

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

SKU

Ask A Question

Details: Cal-Royal MR9800 / FMR9800 Mortise Lock Exit Device, Grade 1

Specifications

For Doors: Wood/metal. 1¾" (44.5mm) minimum thickness. 4½" (114mm) minimum stile width.
Chassis: Nonferrous alloy.
Chassis Cover: Non-ferrous plated material.
End Cap: Brass, Bronze or Stainless Steel construction.
Handing: Handed. Specify RHR or LHR.
ANSI Standard: A156.3, Grade 1.
Mounting: Furnished standard with wood and machine screws.
Strikes: Standard ANSI strike.
Mortise Lock: Grade (1) for 1¾" (44.5mm) thick doors. Reversible. Fits door prepared for ANSI Standard A115.1.
Fire Exit Hardware: FMR9800 Series for fire exit hardware for all types of 8' × 8' double doors for up to 3 hour fire labeled installations, conforms to standards UL10C and UBC 7-2-1997 codes.
Trim: Only compatible with MRESC9800 Series Cal-Royal Escutcheon Trim
Electric Functions: (ELR) Electrical Latch Retraction and RX & LX Signal Switch available.
Door Size: MR9800EO36 for 36" doors. MR9800EO48 for 48" doors.
Alarm: Prefix "NALRM" before PART#

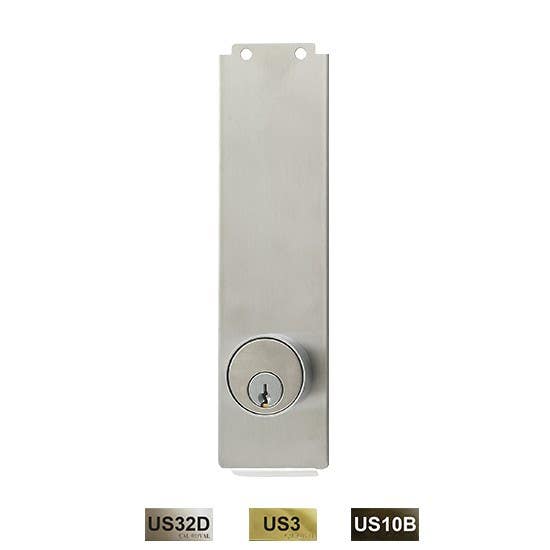

Dogging Feature: Cylinder dogging available for non fire rated applications.

Keyways

6 pin solid brass "C" keyway Mortise Cylinder standard. Optional: Schlage E, Schlage C-K, Russwin D1-2-3-4, Corbin 59⁄60, Sargent LA-LB-LC, Falcon/Weiser E, Arrow A, Yale 8, Yale GA and Kwikset. Can also accept Medeco, Assa, and Kaba High Security Cylinders.

(IC)Interchangeable Core

Interchangeable core locks will accept compatible 6 or 7 pin cores with BEST, FALCON and ARROW.

(ICSC)Interchangeable Core

Indicates function available with Schlage Full size format Interchangeable Core.

Escutcheon Dimensions

2" width × 8" length. Lever length: 4¾". Fits and covers 2⅛" 161 cutout. MRESC9800 or ICMRESC9800 or ICSCMRESC9800 - ENTRANCE Key locks or unlocks lever. Operates as classroom function. ANSI Function - 63 MRESC9805 or ICMRESC9805 or ICSCMRESC9805 - STOREROOM Key retracts latchbolt, otherwise always locked. ANSI Function - 04 * MUST USE MR98005EO36/48 Mortise Rim Exit MRESC9830 - PASSAGE Trim always operable and free. ANSI Function - 62 * MUST USE MR98005EO36/48 Mortise Rim Exit
