Energetic Lighting E1DL22D8 LED Down Light New Construction 8"
$34.99
$60.00
42% Off
- Model:
-
E1DL22D8
This item has been discontinued
Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote - Commercial voltages
- Elegant and efficient design
- 0-10V dimming at all voltages
- Trade size 1/2" flexible metal conduit input lead
- Suitable for Damp Location use
- Easy and secure installation
- Order Number
- 50012
- Model Number
- E1DL22D8-850
- Configuration
- 8-inch
- Beam Angle
- 100
- Lumen Output
- 1800 LM
- Luminous Efficacy
- 81 LM/W
- Input Power
- 22 W
- Input Voltage
- 120-277 Vac
- Power Factor
- 0.9
- THD
- <0.2
- Color Temp (CCT)
- 5000 K
- Color Rend (CRI)
- 83
- Lifetime Rating
- 50000 hours
- Warranty
- 5 Years
- Dimmability
- 0-10v
- Operating Temp
- -4 to 104 F
- Environment
- Damp Location
- Safety Cert
- UL
- Weight
- 2.1 LBS
- Dimensions
- 9.1(D)x3.9"(H)
- Order Number
- 50011
- Model Number
- E1DL22D8-830
- Configuration
- 8-inch
- Beam Angle
- 100
- Lumen Output
- 1800 LM
- Luminous Efficacy
- 81 LM/W
- Input Power
- 22 W
- Input Voltage
- 120-277 Vac
- Power Factor
- 0.9
- THD
- <0.2
- Color Temp (CCT)
- 3000 K
- Color Rend (CRI)
- 83
- Lifetime Rating
- 50000 hours
- Warranty
- 5 Years
- Dimmability
- 0-10v
- Operating Temp
- -4 to 104 F
- Environment
- Damp Location
- Safety Cert
- UL
- Weight
- 2.1 LBS
- Dimensions
- 9.1(D)x3.9"(H)
- Order Number
- 50020
- Model Number
- E1DL22D8-835
- Configuration
- 8-inch
- Beam Angle
- 100
- Lumen Output
- 1800 LM
- Luminous Efficacy
- 81 LM/W
- Input Power
- 22 W
- Input Voltage
- 120-277 Vac
- Power Factor
- 0.9
- THD
- <0.2
- Color Temp (CCT)
- 3500 K
- Color Rend (CRI)
- 83
- Lifetime Rating
- 50000 hours
- Warranty
- 5 Years
- Dimmability
- 0-10v
- Operating Temp
- -4 to 104 F
- Environment
- Damp Location
- Safety Cert
- UL
- Weight
- 2.1 LBS
- Dimensions
- 9.1(D)x3.9"(H)
- Order Number
- 50013
- Model Number
- E1DL22D8-840
- Configuration
- 8-inch
- Beam Angle
- 100
- Lumen Output
- 1800 LM
- Luminous Efficacy
- 81 LM/W
- Input Power
- 22 W
- Input Voltage
- 120-277 Vac
- Power Factor
- 0.9
- THD
- <0.2
- Color Temp (CCT)
- 4000 K
- Color Rend (CRI)
- 83
- Lifetime Rating
- 50000 hours
- Warranty
- 5 Years
- Dimmability
- 0-10v
- Operating Temp
- -4 to 104 F
- Environment
- Damp Location
- Safety Cert
- UL
- Weight
- 2.1 LBS
- Dimensions
- 9.1(D)x3.9"(H)
- Schools and Universities
- Retail Shops
- Healthcare
- Office & Meeting Space
- Multifamily & Mixed-Use
- Industrial Buildings
- Multi Family or Hospitality
- Civil Service Buildings
- Sports or Recreational Lighting
- Stairwells
Details: Energetic Lighting E1DL22D8 LED Down Light New Construction 8"

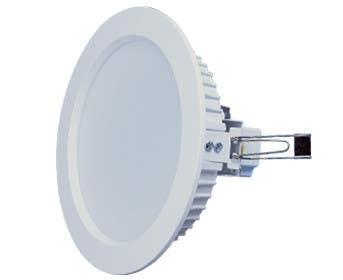

Energetic Lighting's E1DL22D8 series of LED downlight retrofit kits provides a simple and elegant solution for converting existing 8 inch recessed cans into LED fixtures. Energy efficient at 22 watts while producing up to 1800 lumens with a beam angle of 100. Two spring mounting clips provide a secure and simple installation into any existing 8-inch downlight. Rated for 120-277V universal voltage and suitable for 0-10v dimming systems, this downlight kit is versatile enough for any installation location. Comprising of a durable die-cast aluminum construction and a LED lifetime rating of at least 50,000 hours, this robust downlight is designed for many years of reliable operation.
