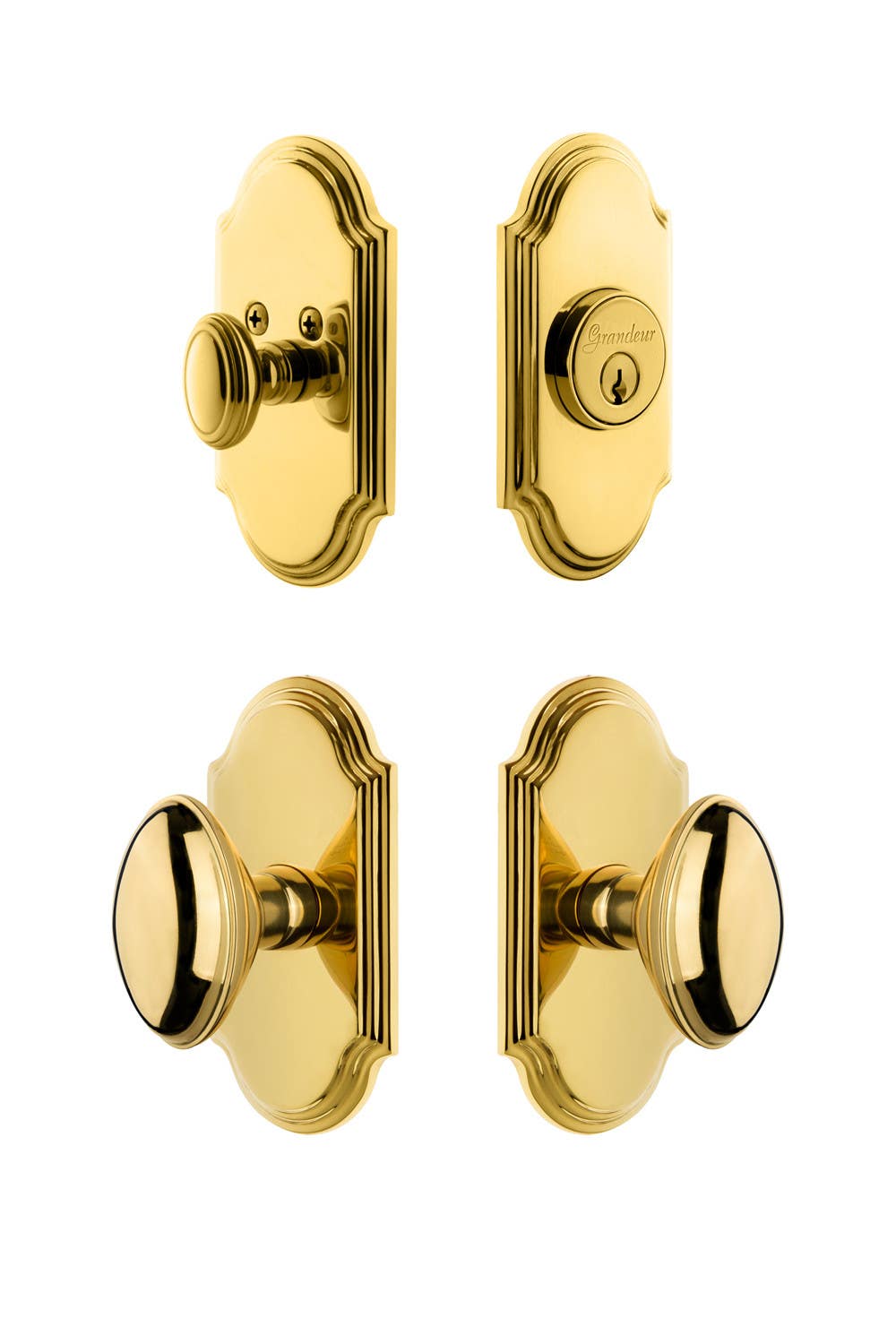

Grandeur Arc Plate w/ Eden Prairie Knob & Matching Deadbolt
$585.00
As low as:
- Model:
-
ARCEDN-42325329Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Grandeur Arc Plate w/ Eden Prairie Knob & Matching Deadbolt
The Arc Plate, with its graceful top curve meeting a waterfall edge, conveys a gentleness augmented by strength. Add our Eden Prairie Knob and matching Arc Deadbolt for a charming yet sleek appeal. All Grandeur products are created from solid (not plated) forged brass.
Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior trim handleset, handleset latch and kit, screws to install and two keys.
- Solid forged brass for fine detail
- Complete set for one door (both sides)
- Perfect for restoration and easy to install on modern pre-drilled doors
- Hand assembled in the USA
- Lifetime Mechanical Warranty
- Design Code
- ARCEDN
- Collection
- Arc
- Category
- Entry Set
- ADA Rated
- NO
- Finishes Available
- Antique Pewter, Lifetime Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
- Material
- Brass
- Door Handing
- Non-handed
- Backset Options
- 2-3/8", 2-3/4"
- Assembled In
- YES
Dimensions
- Long Plate Height
- 4.75"
- Long Plate Width
- 2.5"
- Knob Height
- 2.75"
- Knob Width
- 1.625"
- Projection
- 2.74"
- Cross Bore
- 2.125"
- Door Thickness
- 1 3/8" - 1 3/4"
- Thumb Turn Diameter
- 1.42"
- Thumb Turn Projection
- 1.69"
- Edge Bore Hole Diameter
- 1"
- Door Bore Hole Diameter
- 2.125"
- Strike Height
- 2.25"
- Strike Width
- 1"
- Deadbolt Throw Length
- 1"
Shipping
- Box Size
- 19-3/8" × 7" × 5-3/4"
- Shipping Weight
- 7.5 lbs
