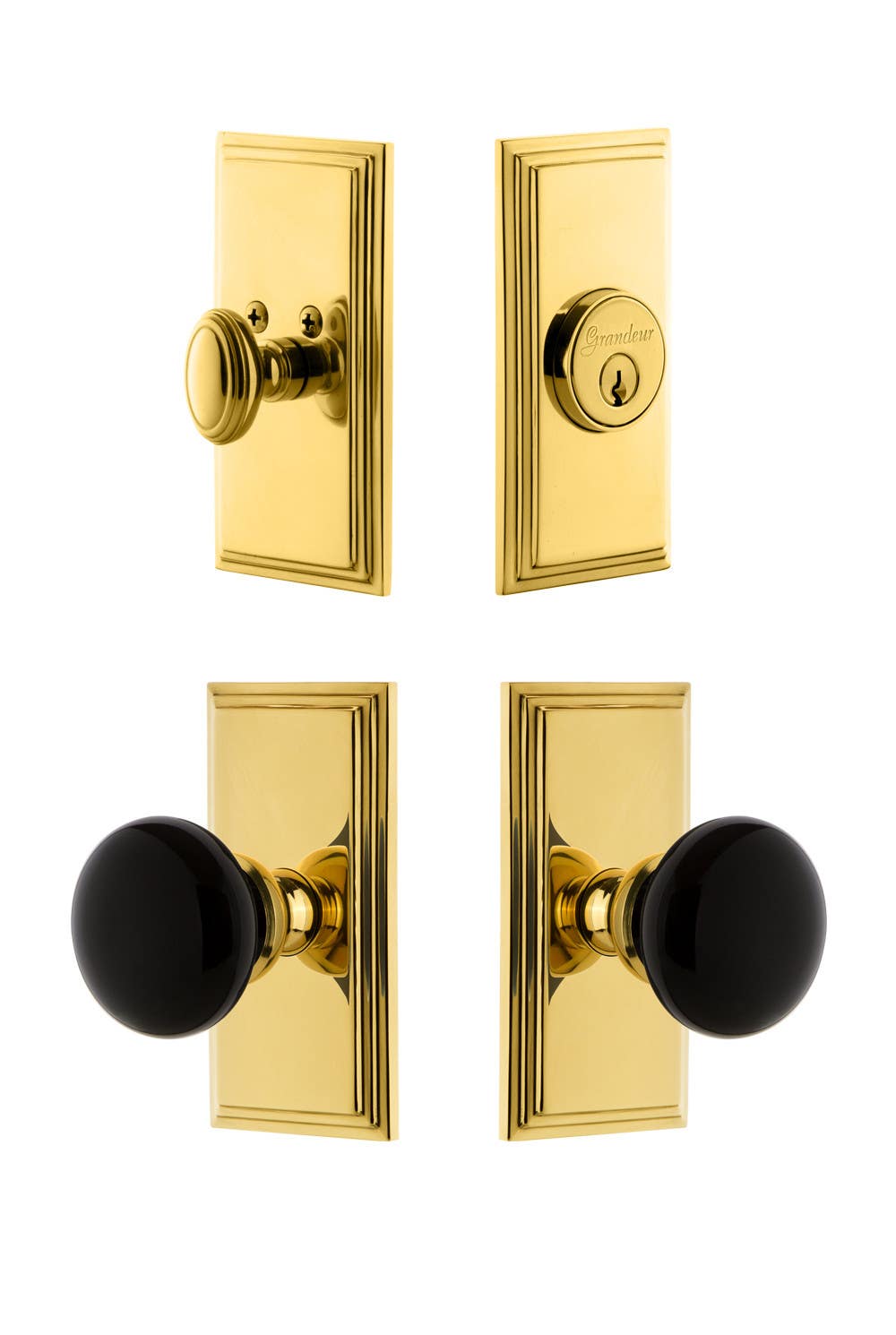

Grandeur Carre' Plate w/ Coventry Knob & Matching Deadbolt
$585.00
As low as:
- Model:
-
CARCOV-42292107Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Grandeur Carre' Plate w/ Coventry Knob & Matching Deadbolt
The Carre plate and Deadbolt, with their clean parallel lines and uncomplicated shape provide endless versatility. Adding to our collection of porcelain knobs, the Coventry black porcelain knob holds an ageless design that radiates pure charm and style. All Grandeur products are created from solid (not plated) forged brass.
Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior trim handleset, handleset latch and kit, screws to install and two keys.
- Solid forged brass for fine detail
- Complete set for one door (both sides)
- Perfect for restoration and easy to install on modern pre-drilled doors
- Hand assembled in the USA
- Lifetime Mechanical Warranty
- Design Code
- CARCOV
- Collection
- Carre'
- Category
- Entry Set
- ADA Rated
- No
- Finishes Available
- Antique Pewter, Lifetime Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
- Material
- Brass/Porcelain
- Door Handing
- Non-Handed
- Backset Options
- 2-3/8", 2-3/4"
- Assembled In
- YES
Dimensions
- Long Plate Height
- 4.75"
- Long Plate Width
- 2.5"
- Knob Diameter
- 2.25"
- Projection
- 2.9"
- Cross Bore
- 2.125"
- Door Thickness
- 1 3/8" - 1 3/4"
- Max Height
- 10.25"
- Max Width
- 2.5"
- Thumb Turn Diameter
- 1.42"
- Thumb Turn Projection
- 1.69"
- Edge Bore Hole Diameter
- 1"
- Door Bore Hole Diameter
- 2.125"
- Strike Height
- 2.25"
- Strike Width
- 1"
- Deadbolt Throw Length
- 1"
Shipping
- Box Size
- 7" × 5-1/8" × 8-1/4"
- Shipping Weight
- 7.5 lbs
Grandeur’s Carré Collection features tall plated handlesets ideal for larger sized doors allowing you a visually pleasing plate-to-door ratio design. Mix and match your handleset with any of Grandeur’s knobs and levers to create your own entrance that perfectly match your style and home. They are made of solid forged brass to allow for long lasting durability and the pre-mounted knobs and levers make installation a breeze.
