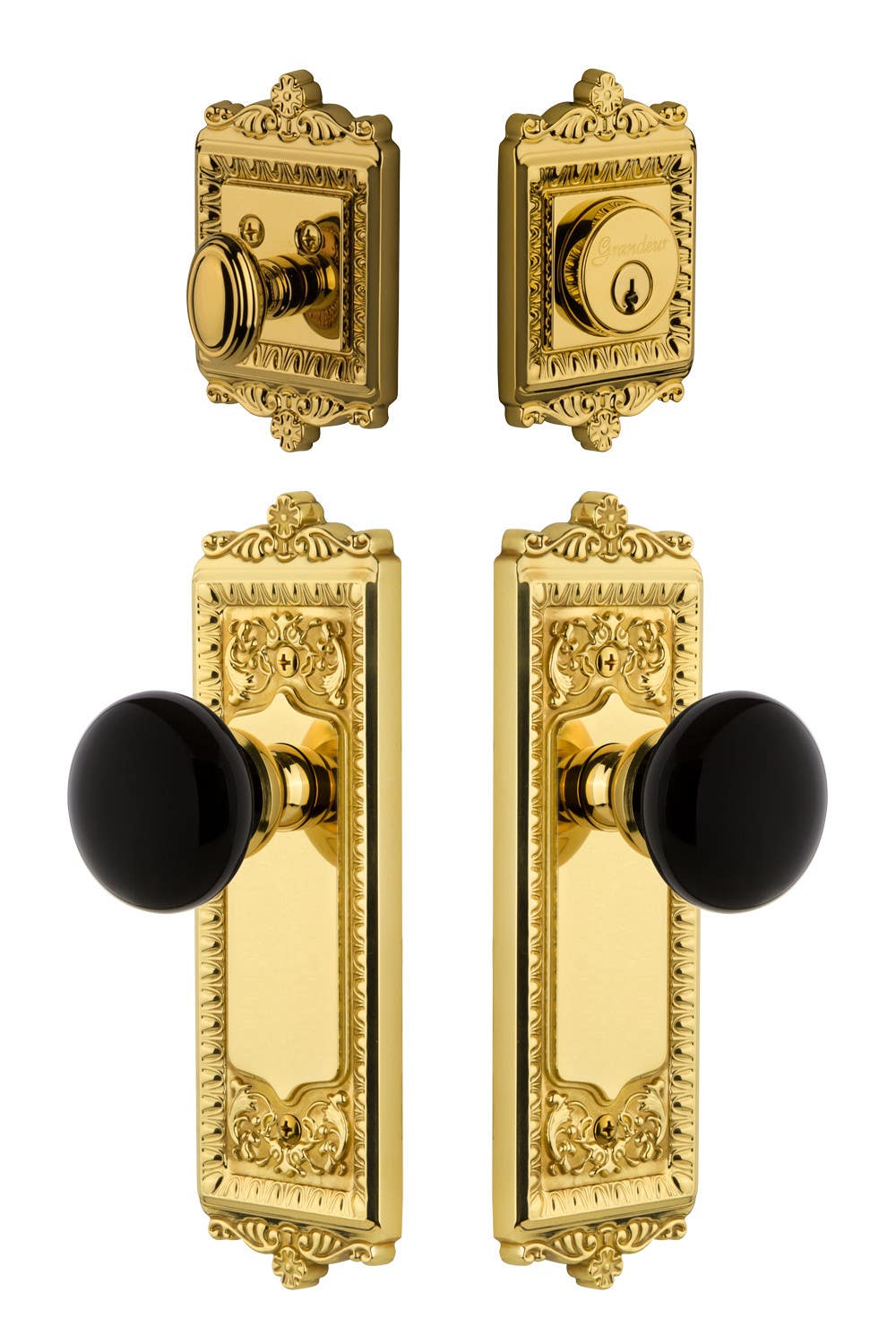

Grandeur Windsor Plate w/ Coventry Knob & Matching Deadbolt
$665.00
As low as:
- Model:
-
WINCOV-42292133Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Grandeur Windsor Plate w/ Coventry Knob & Matching Deadbolt
The Windsor Plate and Deadbolt came into their current form from the neo-classical architecture made famous by Thomas Jefferson's Monticello and the royal Windsor estates in England. Adding to our collection of porcelain knobs, the Coventry black porcelain knob holds an ageless design that radiates pure charm and style. All Grandeur products are created from solid (not plated) forged brass.
Exterior and interior trim deadbolt, deadbolt latch and kit, exterior and interior trim handleset, handleset latch and kit, screws to install and two keys.
- Solid forged brass for fine detail
- Complete set for one door (both sides)
- Perfect for restoration and easy to install on modern pre-drilled doors
- Hand assembled in the USA
- Lifetime Mechanical Warranty
- Design Code
- WINCOV
- Collection
- Windsor
- Category
- Entry Set
- ADA Rated
- No
- Finishes Available
- Antique Pewter, Lifetime Brass, Polished Nickel, Satin Nickel, Timeless Bronze, Vintage Brass
- Material
- Brass/Porcelain
- Door Handing
- Non-Handed
- Backset Options
- 2-3/8", 2-3/4"
- Assembled In
- YES
Dimensions
- Long Plate Height
- 8.625"
- Long Plate Width
- 2.625"
- Knob Diameter
- 2.25"
- Projection
- 2.9"
- Cross Bore
- 2.125"
- Door Thickness
- 1 3/8" - 1 3/4"
- Max Height
- 12.6"
- Max Width
- 2.6"
- Thumb Turn Diameter
- 1.42"
- Thumb Turn Projection
- 1.69"
- Edge Bore Hole Diameter
- 1"
- Door Bore Hole Diameter
- 2.125"
- Strike Height
- 2.25"
- Strike Width
- 1"
- Deadbolt Throw Length
- 1"
Shipping
- Box Size
- 7" × 5-1/8" × 8-1/4"
- Shipping Weight
- 7.5 lbs
Grandeur’s Windsor Collection is inspired by neoclassical architecture made famous by Thomas Jefferson’s Monticello and the royal Windsor estates in England. Mix and match Grandeur’s vast selection of knobs, levers, deadbolts, back plates, and handlesets to customize your home entrance in a way that truly reflects your design vision. Rely on your new entrance way for years to come thanks to its solid forged brass construction.
