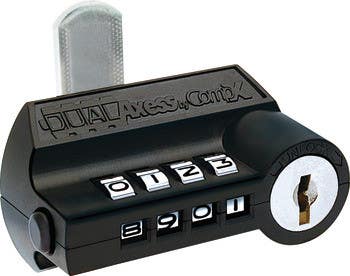

Hafele 235.62. Combination Cam Lock , DualAxess
$84.88
- Model:
-
235.62.
Item normally ships out within 1-2 Weeks (excluding transit time).
If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Hafele 235.62. Combination Cam Lock , DualAxess
Features
- Open using either a combination or override key
- Once unlocked, rotate the housing 90D clockwise to unlatch
- Combination can only be changed with the override key and current combination
- Replaces standard cam locks to allow keyless access using your own personal code
- Retrofits into an existing 19 mm (3/4") hole
- Mounts vertically or horizontally on flush, overlay, or lipped/overlay applications
- Attach the provided cam for 90D and can be re-oriented
Specifications
- Dim. (L x W x H)
- 63 x 36 x 52 mm
- Data-driven technical data table
- 2305
- Material
- Lock housing: Die-cast, Cylinder: Brass
- Cylinder length
- 22 mm
- Cylinder length
- 7/8"
- with key
- Yes
- Supplied with
- 2 keys, Straight cam, Offset cam, Spacer, Spur washer, Cylinder nut, 2 screws
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government,
- Retail & Strip Malls
- Multifamily & Mixed-Use
