Hafele 348.90.0 Concealed Face Frame Hinge, Grass TEC Face Mount, 108D
$9.30
- Model:
-
348.90.0-42465191
Item normally ships out within 1-2 Weeks (excluding transit time).
If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Hafele 348.90.0 Concealed Face Frame Hinge, Grass TEC Face Mount, 108D
Features
- Soft close mechanism is pre-mounted in the hinge cup
- Adjustment switch to regulate closing action
- One-piece hinge and base plate
- 3-dimensional adjustment
- Cam side and depth adjustment
Specifications
- Door processing for assembly
- with cup drilling
- Material
- Steel
- Opening angle
- 108D
- Cup drilling depth
- 11 mm
- Drilling depth
- Cup drilling depth: 7/16"
- Drilling pattern
- 45/9.5

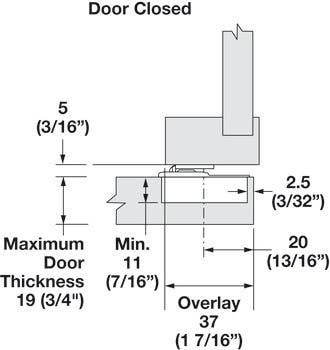

- Installation height
- Min. 1 7/16" when plate is flush to inside of face frame
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government,
- Retail & Strip Malls
- Multifamily & Mixed-Use
