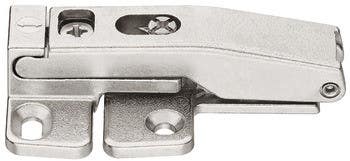

Hafele 372.64. Connecting Hinge, for Doors with 20 mm (13/16")
$18.21
- Model:
-
372.64.Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Hafele 372.64. Connecting Hinge, for Doors with 20 mm (13/16")
Features
- With finger protection function
- Installed with chipboard screws
- If fingers are accidentally inserted into the flap gap, the hinge unhooks itself to prevent injuries.
- Two required per door, for doors over 900 mm (35 7/16") three are required.
- The hinge comes apart when fingers get unintentionally in the gap of the door
Specifications
- Color/finish
- nickel plated
- Material
- Zinc alloy
- Version
- With finger trapping protection function
- Adjustment facility
- 3-dimensional, Side adjustment +or- 2 mm, Gap adjustment -2 to +1 mm, Depth adjustment +or- 1.5 mm
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government,
- Retail & Strip Malls
- Multifamily & Mixed-Use
