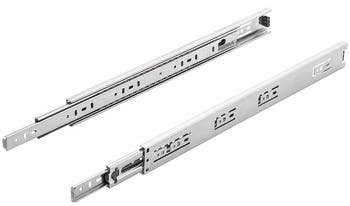

Hafele 432.21. Matrix Runner BB A45, Ball Bearing Slide, Full Extension, Steel, Side Mounted

$8.10

Model:: 432.21.

Item normally ships out within 1-2 Weeks (excluding transit time).

If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Installation Length

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Hafele 432.21. Matrix Runner BB A45, Ball Bearing Slide, Full Extension, Steel, Side Mounted

Features

Tested in accordance with ANSI/BHMA and WI
Hold-in detent secures drawer in fully closed position; prevents drawer from creeping open

Specifications

Load bearing capacity: 100 lbs
Mounting: Side clearance: (1/2")
Version: Lever disconnect
Type of pull out: Full extension
Removing the running track: without release lever
Material: Steel
Bearing: Ball bearing
Height: 45 mm
Height (inch): 1 3/4"
Dim. (W x H): 45 mm
Installation: For screw fixing to cabinet, on drawer or shelf, side mounted
Supplied with: 5 pair per box, Each pair of slides is poly-bagged, Pallet quantities available upon request

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government,
Retail & Strip Malls
Multifamily & Mixed-Use
