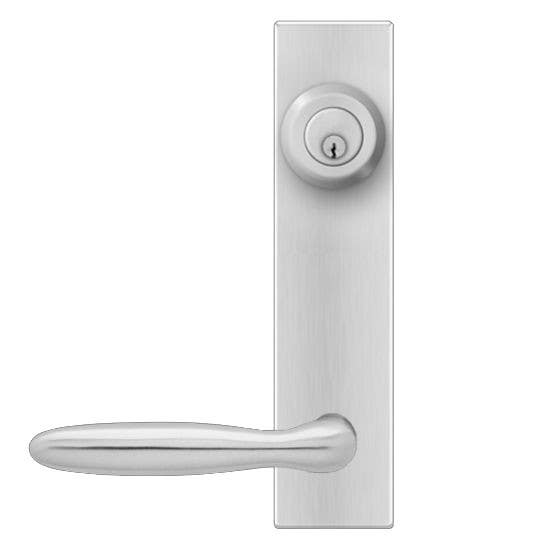

Karcher Design UEL24 Corfu Tubular Entry Set w/ Escutcheon Plate, Lever/Lever
$186.84
$207.60
10% Off
As low as:
- Model:
-
UEL24Item normally ships out within 1-2 Weeks (excluding transit time).If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Karcher Design UEL24 Corfu Tubular Entry Set w/ Escutcheon Plate, Lever/Lever
Features
- Suits on 2 1/8" (54mm) hole and center to center 5 1/2" (140mm)
- Dimensions: 9 7/8" × 2 3/8" × 1/2" (250 × 60 × 12mm)
- Standard door thickness 2 1/8" (55mm) and 2 9/16" (65mm)
- Distance ring (UZ D2 71) required for 1 3/8" (35mm) to 1 3/4" (45mm)
- Passage latch with standard Backset 2 3/8" (60mm)
- Stainless steel T-strike plate with plastic dust cover
- Stainless steel strike plate with plastic cover
- Stainless steel latch face plate
- Entrance version and Patio Version:- Dead bolt latch: adjustable with a backset of 2 3/8" (60 mm) and 2 3/4" - (70 mm)
- Entrance version: Solid Brass Cylinder with 5 pins and C keyway
Specifications
- Diameter of lever
- 13/16" (21 mm)
- Dimensions
- 9 13/16 × 2 3/8 × 1/2" (250 × 60 × 12 mm)
- Material
- Stainless steel
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
