Klein Tools MM420 Digital Multimeter, TRMS Auto-Ranging, 600V, Temp
$71.99
- Model:
-
MM420Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote

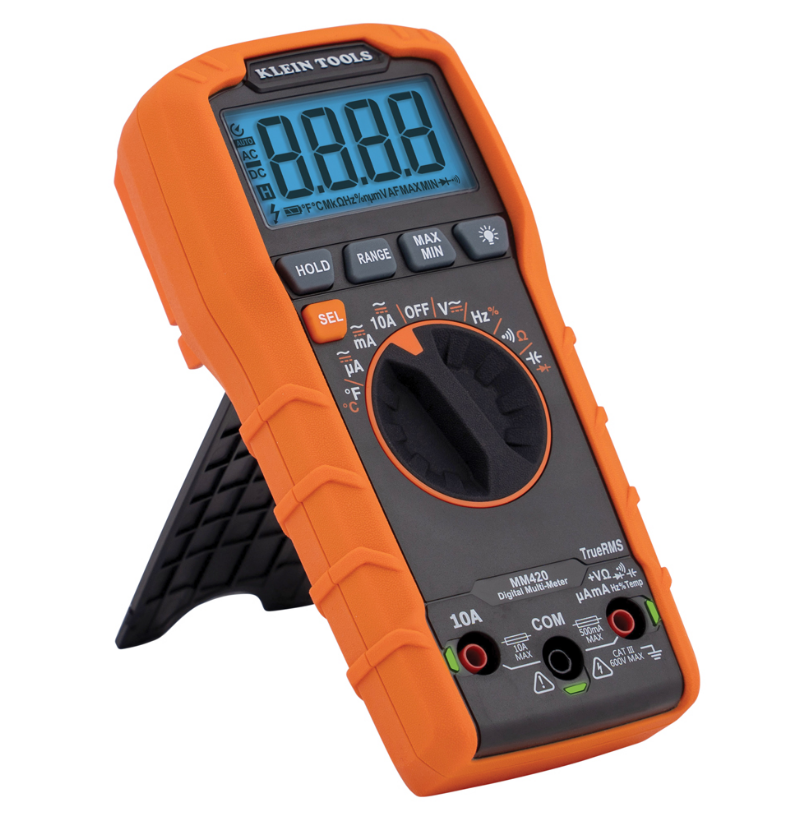

Details: Klein Tools MM420 Digital Multimeter, TRMS Auto-Ranging, 600V, Temp
Klein Tools MM420 Multimeter is an auto-ranging, true root mean square (TRMS) multimeter that measures AC/DC voltage, AC/DC current, and resistance. It can also measure temperature, capacitance, frequency, duty-cycle, and test diodes and continuity. Klein Tools Test and Measurement product line was exclusively designed from the ground up by electricians for electricians. Years of field research, combined with extensive input from electricians across America, inspired the development of meters and electrical testers loaded with innovative, time-saving features.
Features
- Multimeter with automatic ranging true root mean square (TRMS) technology for increased accuracy
- Measures up to 600V AC/DC voltage, 10A AC/DC current and 50 MOhms resistance, continuity, temperature, capacitance, frequency, duty-cycle, and test diodes
- Lead Alert protection with LED illumination for lead placement and an easy-to-view backlit display
- Low battery indicator and easily accessible battery and fuse compartment
- Durable meter built to withstand a 6.6-Foot (2 m) drop
- Includes test leads, thermocouple with adapter, batteries and user manual
- CAT III 600V safety rating
- For use in basic and controlled electromagnetic environments such as residential, business and light-industrial locations
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
- Before each use verify meter operation by measuring a known voltage or current.
- Use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed.
Specifications
- Type
- Digital Multimeter
- Application
- Testing and Measuring Voltage
- Special Features
- Lead-Alert; Auto-Range; Min/Max Measurements; Backlight; Auto Power-Off; Data-Hold
- Material
- ABS, Electrical Components
- Batteries
- 2 × AAA
- Drop Protection
- 6.6' (2 m)
- Display
- 4000 Count LCD
- Color
- Orange/Black
- Functions
- Measures up to 600V AC/DC Voltage, 10A AC/DC Current, 50M? Resistance, Temperature, Capacitance, Frequency, Duty-Cycle, Test Diodes, and Continuity
- Voltage
- 600V AC/DC
- Frequency
- 1 Hz - 50 KHz
- Current
- 10A AC/DC
- Capacitance
- 400 microfarad
- Ohms (Resistance)
- 50M?
- Standard
- CAT III 600V; CE and UKCA Certified
- Temperature Range
- -40 Degree to 1832 Degree F (-40 Degree to 1000 Degree C)
- Included
- Multimeter, Carrying Case, Test Leads with CAT III/CAT IV Safety Caps, Thermocouple, Instructions, 2 × AAA Batteries
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
