Magnet Source 370 Heavy-Duty Holding & Retrieving Magnet
$18.94
As low as:
- Model:
-
370-42311442Item is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote

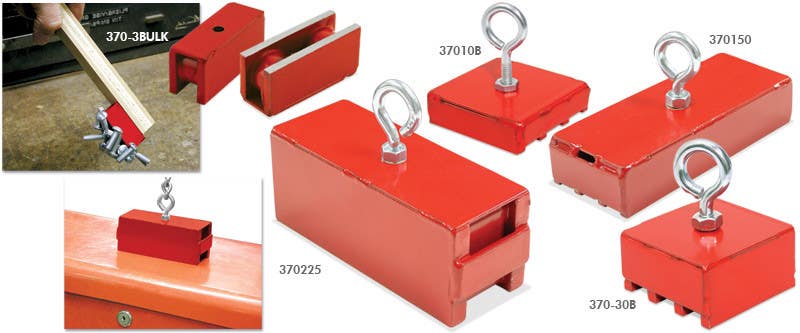

Details: Magnet Source 370 Heavy-Duty Holding & Retrieving Magnet
These models lift up to 225 pounds. Attach a rope or chain to the eyebolt and go fishing for metal objects in tanks, vats, waterways, or other hard-to-reach places. Move parts in and out of degreasing tanks. All are painted red. Sturdy welded construction. Eyebolt and nuts included, except for 370-3Bulk.
Heavy Duty Holding and Retrieving Magnets
| Part No. | Type | Pounds Pull | Length | Width | Height | PW | C | CG | Hole Diameter | Weight(lbs.) |
|---|---|---|---|---|---|---|---|---|---|---|
| 370225 | C | 225 | 5 | 2 | 2 | .375 | .187 | 1.187 | 1/4-20TH | 4.5 |
| 37010B | B | 40 | 2 | 2 | .562 | .187 | .125 | .437 | .25 | 0.83 |
| 370-30B | B | 100 | 2 | 2 | 1.062 | .187 | .125 | .437 | .25 | 0.83 |
| 370150 | B | 150 | 5 | 2 | 1.062 | .187 | .125 | .437 | 1/4-20TH | 1.75 |
Key: PW=Pole Width, C=Clearance of magnet, CG=Center Gap, TH=Tapped Hole.
Dimensions in Inches
