Magnet Source AH Alnico Holding Magnet w/ Keeper

$16.66

Model:: AH-42526115

Item is normally in stock and ships out within 1-2 Business days (excluding transit time).

If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

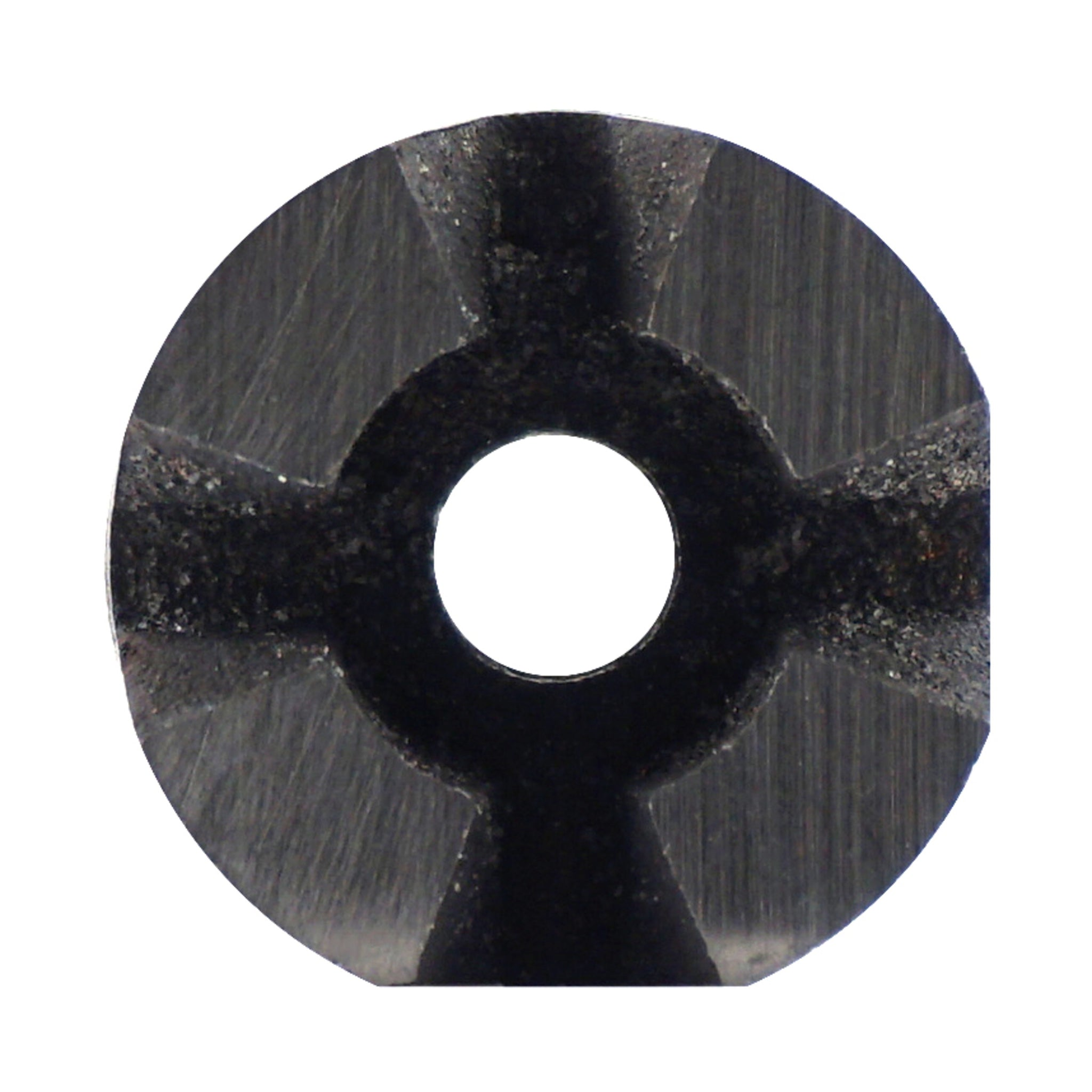

Details: Magnet Source AH Alnico Holding Magnet w/ Keeper

These Alnico 5 holding magnets can be used in a variety of industrial and consumer applications. Each rotor magnet has a center hole that allows for easy mounting. Each includes keeper to contain magnetic strength when not in use.

Features

Use as work holding devices for wood cutting, sign making or other hobby applications
Ideal for school experiments and high heat applications
Includes a metal keeper to help retain magnetic power

Specifications

Finish/Plating: Enamel Paint (AH43136C), Uncoated (AH63130MAG, AH83140)
Grade: 5
High-Grade: No
Hole Diameter (In.): 0.25 (AH43136C, AH63130MAG), 0.5 (AH83140)
Magnet Material: Alnico
Magnet Shape: Custom
Magnetization Orientation: Through Thickness
Multiple Poles: Yes
Number of Holes: 1
Number of Poles: 4 (AH43136C), 6 (AH63130MAG), 8 (AH83140)
Pole Width: 0.5 (AH43136C), 0.625 (AH63130MAG), 1.0 (AH83140)
Product Color: Silver
Product Diameter (In.): 1 (AH43136C), 1.25 (AH63130MAG), 2.0 (AH83140)
Product Height (In.): 0.75(AH43136C, AH63130MAG), 1.25 (AH83140)
Product Material: Steel
Product Shape: Round
Product Thickness (In.): 0.25 (AH43136C, AH63130MAG), 0.375 (AH83140)
Pull Rating: 16 (AH43136C), 25 (AH63130MAG), 65 (AH83140)
Tapped Hole: No

Applications

School Experiments
High Heat Applications
