Magnet Source AH2822N Alnico 2-Pole Holding Magnet w/ Keeper
$11.45
- Model:
-
AH2822NItem is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote

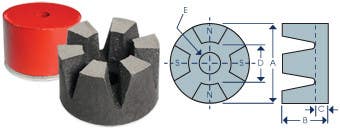

Details: Magnet Source AH2822N Alnico 2-Pole Holding Magnet w/ Keeper
These Alnico 5 holding magnets can be used in a variety of industrial and consumer applications. Center hole allows for easy mounting. Each includes keeper to contain magnetic strength when not in use.
Features
- Use as work holding devices for wood cutting, sign making or other hobby applications
- Ideal for school experiments and high heat applications
- Includes a metal keeper to help retain magnetic power
Specifications
- Finish/Plating
- Enamel Paint
- Grade
- 5
- Hole Diameter (In.)
- 0.218
- Magnet Material
- Alnico
- Magnet Shape
- Custom
- Magnetization Orientation
- Through Thickness
- Multiple Poles
- Yes
- Number of Holes
- 1
- Number of Keepers
- 1
- Number of Poles
- 2
- Pole Width
- 0.7
- Product Color
- Red
- Product Diameter (In.)
- 0.75
- Product Height (In.)
- 0.5
- Product Material
- Painted Steel
- Product Shape
- Round
- Product Thickness (In.)
- 0.27
- Pull Rating
- 4
- Tapped Hole
- No
- Thread Size
- N/A
Applications
- School Experiments
- High Heat Applications
