Magnet Source C Ceremic Latch Magnet Channel Assembly
$0.84
As low as:
- Model:
-
C-42311430Item is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Magnet Source C Ceremic Latch Magnet Channel Assembly

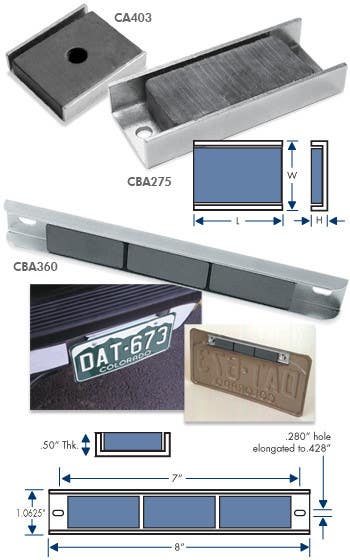

Magnet is fixed into a zinc-plated steel channel with holding power on one large surface. Includes center or outside holes for mounting. Large assembly (CBA360) makes an excellent tool or sign holder, and can be used as a license plate holder for test drives. The rubber magnet assembly (RA403) is impact and vibration resistant.
Latch Magnet Channel Assemblies
| Part No. | Pounds Pull | Length | Width | Height | Channel Hole |
|---|---|---|---|---|---|
| CA403 | 7 | 1 | .875 | .25 | .125 dia.* |
| CBA275 | 25 | 2.7 | 1.08 | .5 | .186 dia. (2) |
| CBA300 | 60 | 3 | 1.5 | .455 | .25 L × .198 W (2) |
| CBA360 | 25 | 8 | 1.063 | .5 | .28 L × .428 W (2) |
*Magnet in the channel has 0.195" Dia. Hole.
Dimensions in Inches
