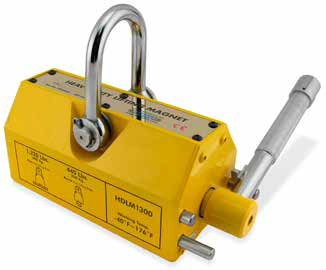

Magnet Source HDNLM Heavy Duty Neodymium Lifting Magnet

$430.43

Model:: HDNLM

Item is normally in stock and ships out within 1-2 Business days (excluding transit time).

If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: Magnet Source HDNLM Heavy Duty Neodymium Lifting Magnet

Built with neodymium magnets - the strongest magnetic material in the world!

These lifting magnets are ideal for handling steel plate, forgings, die castings and similar items in machine shops, warehouses and industrial processing plants. Each unit is serialized and pull tested certified.

Lifts flat or round ferrous metal items
ON/OFF locking release handle
Eliminates the need for slings or clamping devices
No electricity required for operation of magnet
Permanent magnetism guaranteed
For safety, breakaway force is 3.5 times greater than maximum lift ratings, 75% better than the 2-times safety factor required by ASME standards

Heavy Duty Lifting Magnets

Part No.	Flat Max Lift Rate* (lbs.)	Flat Max Lift Rate* (kg.)	Round Lift Rate* (lbs.)	Round Lift Rate* (kg.)	Length	Width	Height	Overall Height	Handle Length	Weight(lbs.)
HDLM220	220	100	66	30	3.625	2.5	2.75	4.5	5.625	6.4
HDLM660	660	300	220	100	6.5	3.5	3.75	6.5	6.875	21.15
HDLM1300	1320	600	440	200	9.25	4.625	4.75	8.75	8.625	49.65
HDLM2200	2200	1000	660	300	10.375	6.625	6.625	11.5	11.125	115.75
HDLM440	4400	1996	1320	599	14.88	8.875	8.354	16.357	17.25	275

Key:*=Lifting strength varies depending on thickness and composition of ferrous metal object being lifted. Dimensions for magnet base only. Other sizes available by special order, contact us for details.

Dimensions in Inches
