Magnet Source NAC Neodymium Countersunk Round Base Assembly, Grade 42
$3.77
As low as:
- Model:
-
NACItem is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote

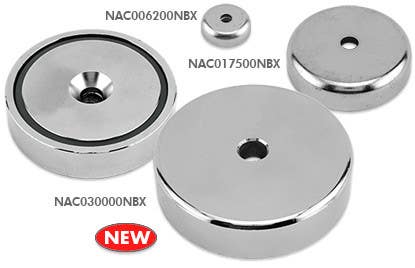

Details: Magnet Source NAC Neodymium Countersunk Round Base Assembly, Grade 42
Powerful, low-profile round base magnets are zincplated to resist corrosion. Countersunk hole allows for flush surface attachment.
Countersunk Grade 42 Neodymium Assemblies
| Part No. | Pounds Pull | Diameter | Thickness | Center Hole | Weight(Lbs.) |
|---|---|---|---|---|---|
| NAC006200NBX | 11 | .618 | .188 | .136 | .02 |
| NAC007500NBX | 15 | .75 | .25 | .170 | .03 |
| NAC010000NBX | 29 | 1 | .25 | .194 | .53 |
| NAC012500NBX | 46 | 1.25 | .375 | .221 | .1 |
| NAC015000NBX | 73 | 1.5 | .375 | .221 | .175 |
| NAC017500NBX | 98 | 1.75 | .375 | .281 | .2 |
| NAC020000NBX | 135 | 2 | .5 | .271 | .35 |
| NAC025000NBX | 203 | 2.5 | .625 | .406 | .9 |
| NAC030000NBX | 280 | 3 | .75 | .406 | 1.5 |
Dimensions in Inches
