Magnet Source TG Light Duty Plate Magnet
$177.69
- Model:
-
TG-42311468Item is normally in stock and ships out within 1-2 Business days (excluding transit time).If out of stock it can take up to 1-2 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Magnet Source TG Light Duty Plate Magnet
Can be installed in chutes or suspended above conveyor belts and pulleys for low volume, lightweight and/or slow-moving applications. These standard ceramic plate magnets are available in single gap design, and are offered in 1 inch thick (standard) or 1.5 inch thick (heavy duty) models. Also available with powerful rare earth magnets. Call us for more details.
Light Duty Plate Magnets
| Part No. | A Width | B Standard Thickness (In.) | Standard Weight (lbs.) | B Heavy Duty Thickness (In.) | Heavy Duty Weight (lbs.) |
|---|---|---|---|---|---|
| TG8 | 8 | 1 | 5.6 | 1.5 | 7.5 |
| TG12.5 | 12.5 | 1 | 8.4 | 1.5 | 11.25 |
| TG16 | 16 | 1 | 11.2 | 1.5 | 15 |
| TG25 | 25 | 1 | 16.8 | 1.5 | 22.5 |

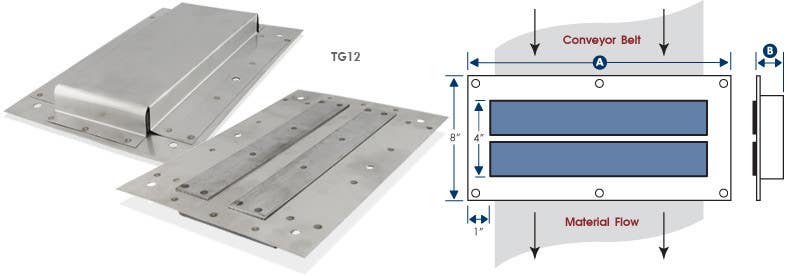

Key: A = Overall width B = Thickness. Suspension distance measurements are the maximum recommended.
Dimensions in Inches
