NGP 140P Surface Mounted, Adjustable Astragal Seal Set

National Guard Products
$43.63
$54.54
20% Off
Model:
140P
Item is normally shipped within 2-3 Weeks from manufacturer.
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

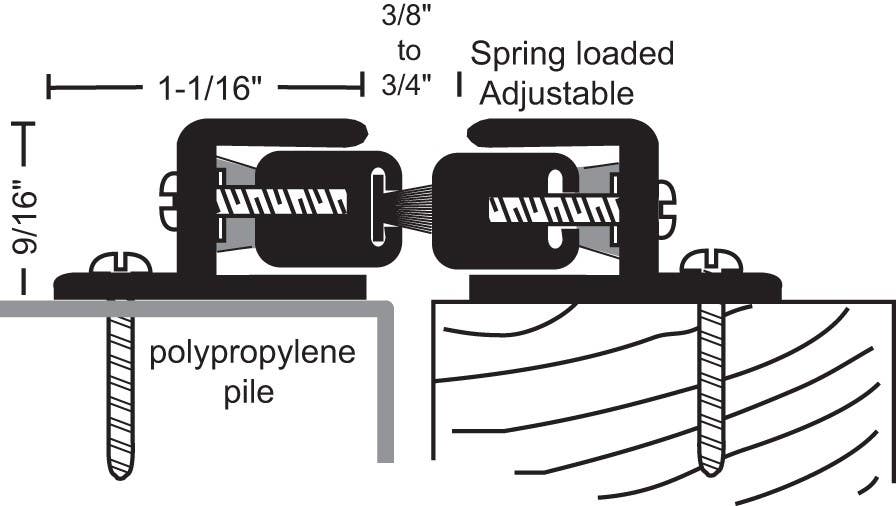

Details: NGP 140P Surface Mounted, Adjustable Astragal Seal Set

Features

  • Aluminum alloy 6063, T5 temper
  • Adjustment screws on 10" centers allow adjustment of the seal without re-positioning mounting location
  • Spring-loaded to maintain constant pressure for the most effective seal
  • BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold
  • up to 3 hrs. metal doors, 20 minute wood doors
  • Order as set to receive both pieces
  • Polypropylene pile is gray
  • Anodized aluminum

Options

  • FATT - Fast Attach Tape

Standards

  • CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
  • ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.

Downloads

Lite Kits, Glass, Louvers, Door Edges/Astragals Cross Reference

Cross Reference

warranty National Guard Products Warranty
