NGP 178S Overlapping Astragal with Silicone Seal
$7.99
$9.99
20% Off
As low as:
- Model:
-
178SItem is normally shipped within 2-3 Weeks from manufacturer.Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote

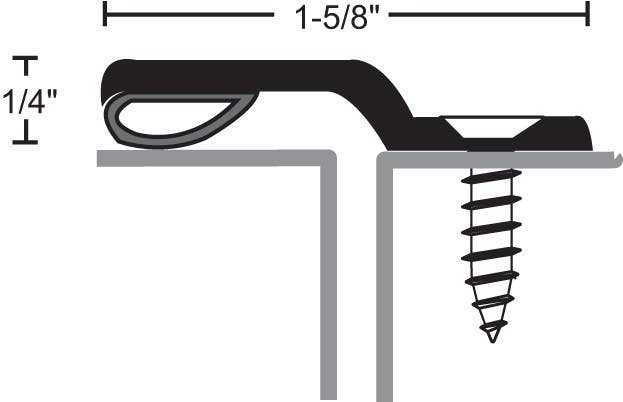

Details: NGP 178S Overlapping Astragal with Silicone Seal
Features
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer: Siloxane
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold, air infiltration and smoke infiltration
- Maximum height 120"
- #10 × 3/4" SMS furnished
- Silicone is black
- Anodized aluminum
Options
- FATT - Fast Attach Tape
Standards
- AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
- ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Downloads
Lite Kits, Glass, Louvers, Door Edges/Astragals Cross Reference
| Post-Consumer Recycled % | Pre-Consumer Recycled % | |
|---|---|---|
| Aluminum Thresholds, Rain Drip Guards | 18% | 49% |
| Architectural Bronze Thresholds, Rain Drip Guards | 70% | 25% |
| Stainless Steel Thresholds, Rain Drip Guards | 25% | 3% |
| Rubber Ramps | 0% | 0% |
| Gasketing with Aluminum Retainers | 13% | 37% |
| Gasketing with Bronze Retainers | 52% | 19% |
| Gasketing with Stainless Steel Retainers | 19% | 2% |
| Self-Adhesive Gasketing | 0% | 0% |
| Finger Guard 2248 | 13% | 37% |
| Finger Guard 2252 | 0% | 0% |
| Metal Edge/Astragal sets (Steel) | 25% | 3% |
| Lite Kits & Louvers (Steel) | 15% | 5% |
| Aluminum Lite Kits & Louvers | 18% | 49% |
| Stainless Steel Lite Kits | 25% | 3% |
| Continuous Geared Aluminum Hinges | 18% | 49% |
| Stainless Steel Continuous Hinges | 25% | 3% |
