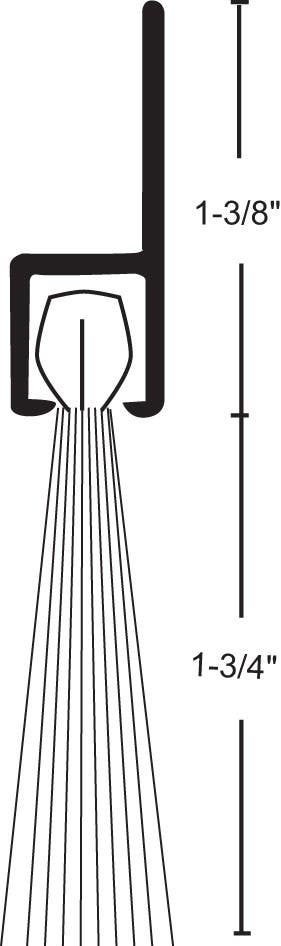

NGP G610 Nylon Brush Perimeter Seal or Door Sweep
$19.87
$24.84
20% Off
As low as:
- Model:
-
G610Item is normally shipped within 2-3 Weeks from manufacturer.Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: NGP G610 Nylon Brush Perimeter Seal or Door Sweep
Features
- Aluminum alloy 6063, T5 temper
- Synthetic polymer: Polyamide
- Excellent abrasion resistance, flexibility and memory
- Moisture resistant
- Retains insecticides well
- Temperature range -70°F to 425°F
- Door Sweep application is Category H Smoke & Draft Control
- REACH and RoHS compliant
- Not effective against water penetration
- #6 × 3/4" stainless steel sheet metal screws furnished
- Screw holes slotted for adjustment
- Nylon brush is gray
- Anodized aluminum
Options
- FATT - Fast Attach Tape
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Downloads
| Post-Consumer Recycled % | Pre-Consumer Recycled % | |
|---|---|---|
| Aluminum Thresholds, Rain Drip Guards | 18% | 49% |
| Architectural Bronze Thresholds, Rain Drip Guards | 70% | 25% |
| Stainless Steel Thresholds, Rain Drip Guards | 25% | 3% |
| Rubber Ramps | 0% | 0% |
| Gasketing with Aluminum Retainers | 13% | 37% |
| Gasketing with Bronze Retainers | 52% | 19% |
| Gasketing with Stainless Steel Retainers | 19% | 2% |
| Self-Adhesive Gasketing | 0% | 0% |
| Finger Guard 2248 | 13% | 37% |
| Finger Guard 2252 | 0% | 0% |
| Metal Edge/Astragal sets (Steel) | 25% | 3% |
| Lite Kits & Louvers (Steel) | 15% | 5% |
| Aluminum Lite Kits & Louvers | 18% | 49% |
| Stainless Steel Lite Kits | 25% | 3% |
| Continuous Geared Aluminum Hinges | 18% | 49% |
| Stainless Steel Continuous Hinges | 25% | 3% |
