NGP 136N Aluminum Neoprene Door Bottom Seal or Astragal
$6.83
$8.53
20% Off
As low as:
- Model:
-
136NItem is normally shipped within 2-3 Weeks from manufacturer.Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: NGP 136N Aluminum Neoprene Door Bottom Seal or Astragal
Product Features
- Aluminum alloy 6063, T5 temper
- Thermo-Plastic Vulcanizate (TPV)
- Very good abrasion resistance, tensile strength and memory
- Flame resistant
- Moisture resistant
- Temperature range -80°F to 275°F
- Good resistance to ozone, sunlight and aging
- BHMA Certified to ANSI/BHMA A156.22 performance tests for Heat, Cold, Air Infiltration

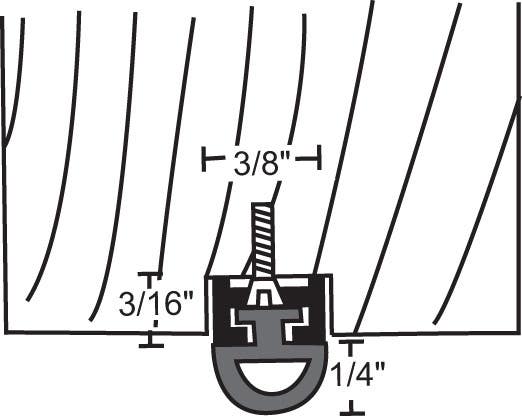

- Mortise 7/16" wide × desired depth
- #2 SMS furnished
- NGP-TPV is black
- Mill aluminum
Certifications
- AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
- ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Download Resources
Lite Kits, Glass, Louvers, Door Edges/Astragals Cross Reference
