NGP 144P Aluminum Mortised Astragal w/ Pile Seal
$45.36
$56.70
20% Off
As low as:
- Model:
-
144PItem is normally shipped within 2-3 Weeks from manufacturer.Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: NGP 144P Aluminum Mortised Astragal w/ Pile Seal
Product Features
- Aluminum alloy 6063, T5 temper
- Adjustment screws on 10" centers allow adjustment of the seal without repositioning mounting location.
- Spring-loaded to maintain constant pressure for the most effective seal
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat and cold

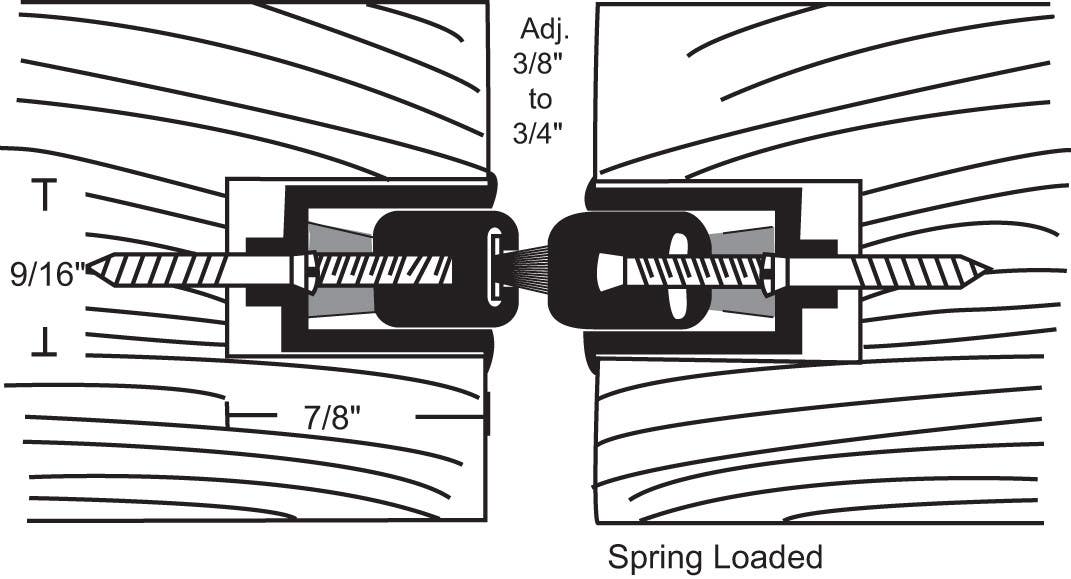

- Mortise dimensions 9/16" wide × 7/8"
- #8 × 3/4" SMS furnished
- Order as set to receive both pieces
- Polypropylene pile is gray
- Anodized aluminum
Certifications
- ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Download Resources
Lite Kits, Glass, Louvers, Door Edges/Astragals Cross Reference
