NGP 151S Mill Aluminum Astragal W/ Silicone Seal
$7.99
$9.99
20% Off
- Model:
-
151SItem is normally shipped within 2-3 Weeks from manufacturer.Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: NGP 151S Mill Aluminum Astragal W/ Silicone Seal
Product Features
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer: Siloxane
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100°F to 500°F, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- BHMA Certified to ANSI/BHMA A156.22 performance tests for heat, cold and air infiltration

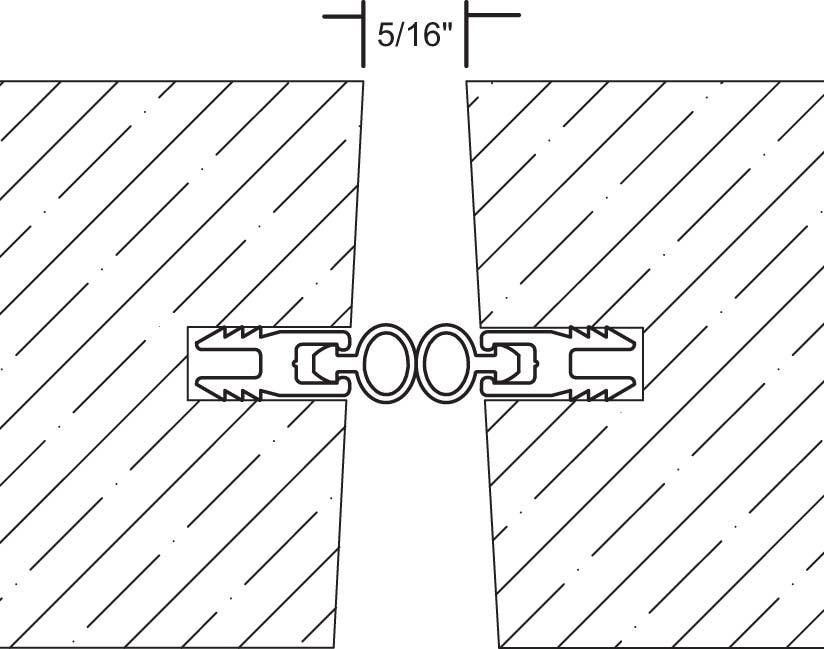

- Mortise dimensions 7/32" wide × 1/2"
- Order as set to receive two pieces
- Maximum length 108"
- Silicone is black
- Mill aluminum
Certifications
- AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
- ANSI/BHMA CERTIFIED. Certified Gasketing complies with American National Standard for Door Gasketing and Edge Sealing Systems ANSI/BHMA A156.22 and is listed in the BHMA Certified Products Directory.
Download Resources
Lite Kits, Glass, Louvers, Door Edges/Astragals Cross Reference
