NGP 335S Mortise Automatic Door Bottom w/ Silicone Seal
$120.80
$151.00
20% Off
- Model:
-
335S
Item is normally shipped within 2-3 Weeks from manufacturer.
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: NGP 335S Mortise Automatic Door Bottom w/ Silicone Seal
Features
- Aluminum alloy 6063, T5 temper
- Synthetic rubber polymer: Siloxane closed cell sponge
- Excellent flexibility and memory
- Flame resistant
- Moisture resistant
- Temperature range -100 degree Fahrenheit to 500 degree Fahrenheit, remains flexible at extreme temperatures
- Excellent resistance to ozone, UV and aging
- Recommended for areas using FM200 or Halon Fire Suppression Systems
- Use with a threshold for maximum sealing capability
- Nylon brush recommended for carpet applications where no threshold is provided
- Specify exact net length required to avoid field sizing
- 36" and longer may be cut up to 4" in the field, under 36" should not be cut in the field, order net length
- Furnished 1/2" shorter than ordered to fit within net door size. (i.e. 36" is furnished 35-1/2")
- Available 23-1/4" net to 48" in length
- End caps furnished standard
- Fits wood fire door mortise restrictions

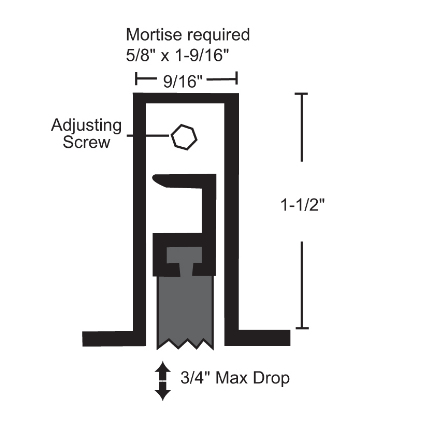

- Mortise required 5/8" × 1-9/16"
- 3/4" max drop
- Silicone is gray
- Mill aluminum
Applications
- "Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use"
