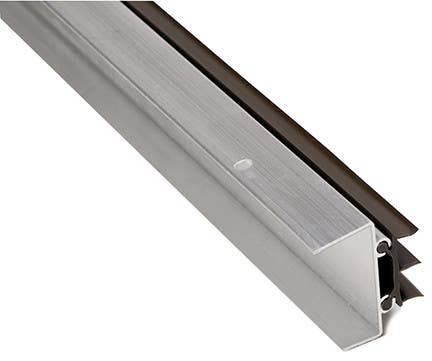

NGP 36ET Aluminum Thermoplastic Door Shoe w/ Notched Fins
$8.86
$11.07
20% Off
As low as:
- Model:
-
36ETItem is normally shipped within 2-3 Weeks from manufacturer.Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: NGP 36ET Aluminum Thermoplastic Door Shoe w/ Notched Fins
Product Features
- Aluminum alloy 6063, T5 temper
- Thermoplastic polymer seal with rigid base and soft vinyl fins
- 48" maximum length
- Available with Notched Fins to allow air flow while restricting light, suffix NF
- Thermoplastic insert is dark brown
- Mill aluminum
Certifications
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- AIR INFILTRATION TESTED to ASTM E283, Standard Test Method for Determining Rate of Air Leakage Through Exterior Windows, Curtain Walls, and Doors.
- SMOKE & DRAFT CONTROL GASKETING. Certified by UL to ANSI/UL10C and ANSI/UL1784 Category 'H'; complies with IBC and NFPA 105 for use on 'S' labeled Positive Pressure Hollow Metal fire doors rated up to 3 hours, and Wood fire doors rated up to 90 minutes.
Options
- Notched Fins - suffix 'NF'
