NGP 550 Square Edge Astragal on Active Leaf
$112.32
$140.40
20% Off
As low as:
- Model:
-
550-42272359
Item is normally shipped within 2-3 Weeks from manufacturer.
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: NGP 550 Square Edge Astragal on Active Leaf
Features
- 20 ga. cold rolled steel
- 18 ga. cold rolled steel on astragal welded to edges

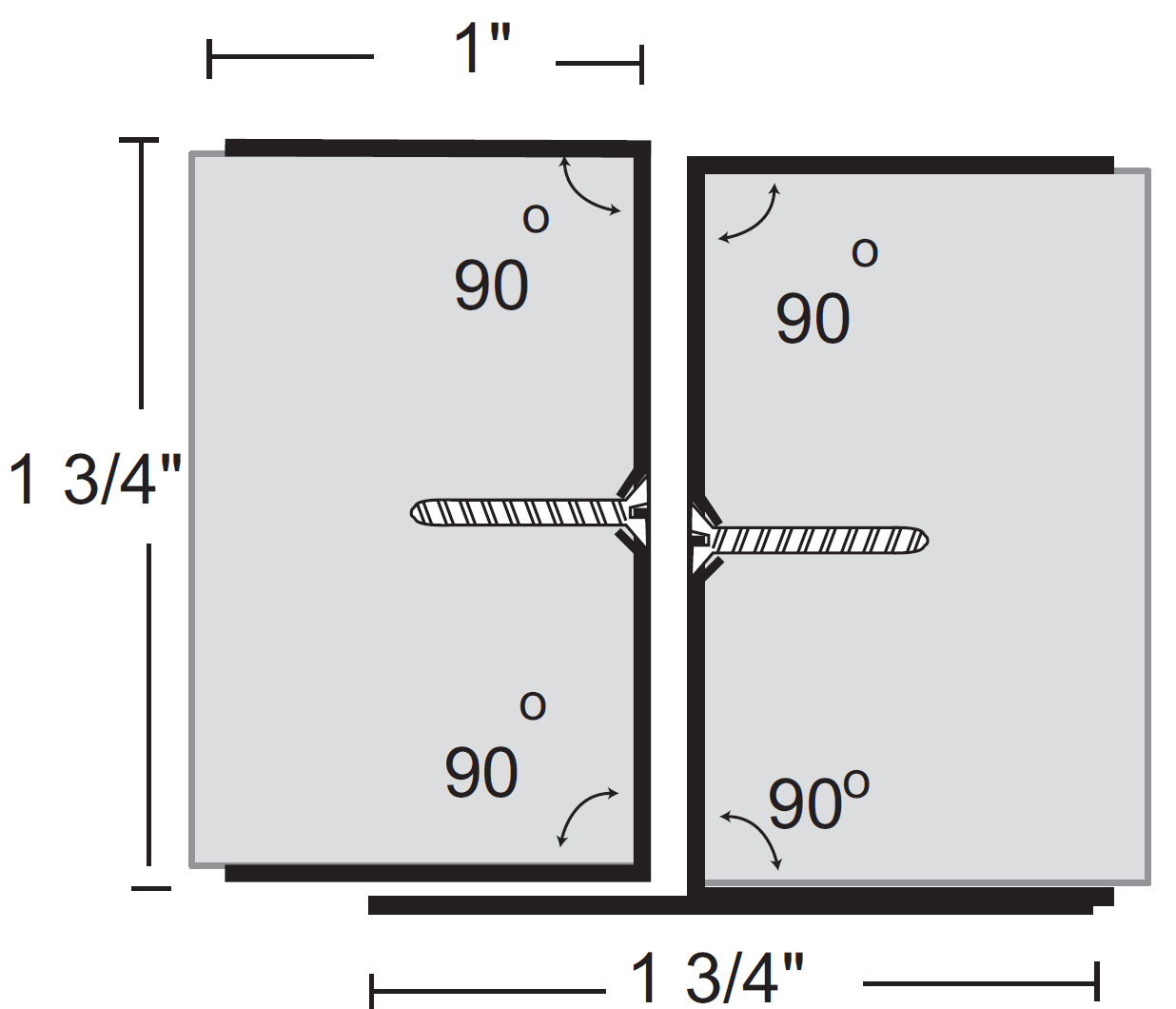

- For 1-3/4" thick doors (inside dim. 1-3/4" actual)
- #8 × 3/4" flat undercut Phillips head SMS
- Standard finish = Tan (T) powder coat
Standards
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal fire doors rated up to 3 Hrs., and Wood fire doors rated up to 90 minutes.
Options
- Powder coat color options available - see color chart
- Stainless steel 20 ga., Type 304, #4 brushed finish - suffix SS"
- Galvanneal
- Torx security screws
- Special door thickness: 1-3/8", 2", 2-1/4"
- Lead lining .030" thick
