Nostalgic Warehouse Studio Plate Deadbolt

$195.00

Model:: STUSTU

Item normally ships out within 1-2 Weeks (excluding transit time).

If out of stock it can take up to 3-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Keying

Function

Backset

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

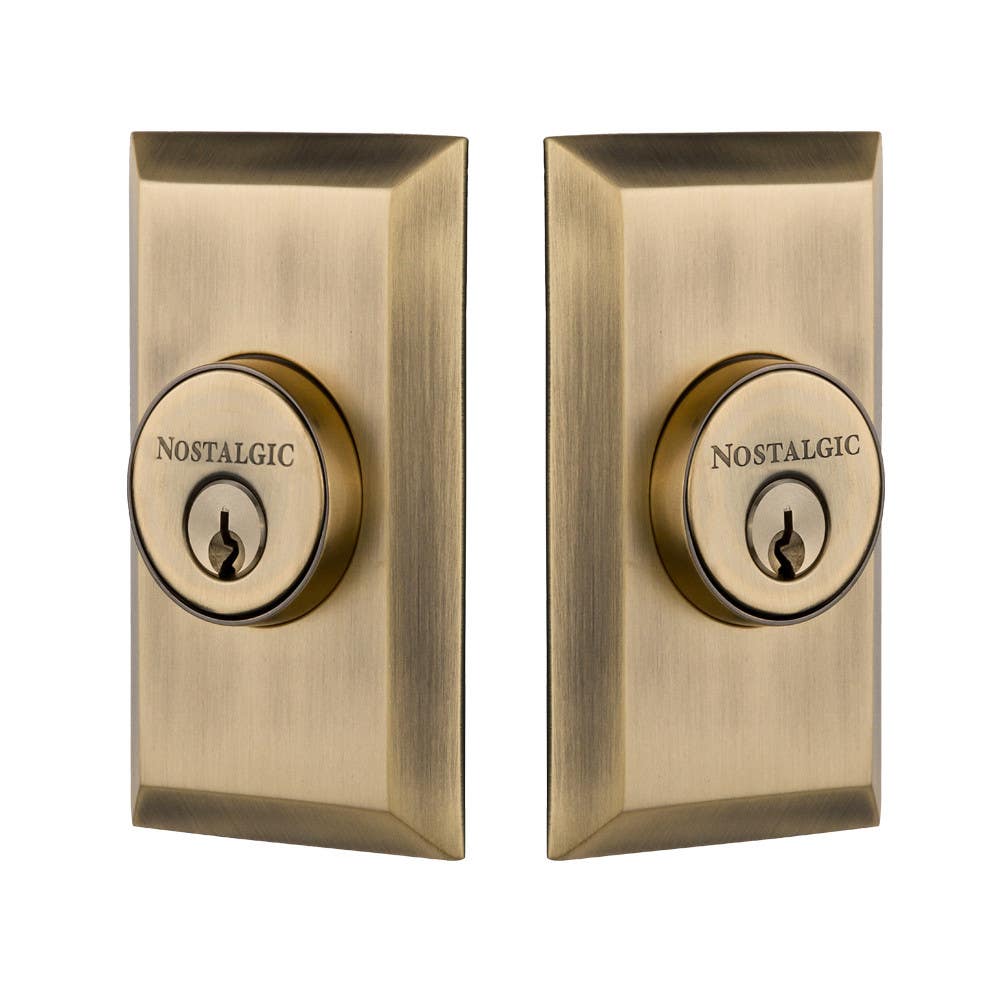

Details: Nostalgic Warehouse Studio Plate Deadbolt

The Studio Deadbolt coordinates well with any architectural style. Made of solid, forged brass for durability and beauty.

Box Contents

Exterior and interior trim deadbolt, deadbolt latch and kit, screws to install and two keys.

Features

Solid forged brass for fine detail
Complete set for one door (both sides)
Perfect for restoration and easy to install on modern pre-drilled doors
Hand assembled in USA
5-year warranty

Specifications

Design Code: STUSTU
Collection: Studio
Category: Deadbolt
ADA Rated: No
Finishes Available: Antique Brass, Antique Pewter, Bright Chrome, Oil-Rubbed Bronze, Polished Brass, Satin Nickel, Timeless Bronze
Material: Brass
Door Handing: Non-handed
Backset Options: 2 3/8"
Assembled In: USA

Dimensions

Assembled Depth (1.75" door thickness): 3.94"
Projection: Exterior: .63"
Cross Bore: 2 1/8""
Door Thickness: 1 3/4" - 2 1/4"
Max Height: 4"
Max Width: 2.5"
Thumb Turn Diameter: 1.375"
Thumb Turn Projection: 1.55"
Edge Bore Hole Diameter: 1"
Door Bore Hole Diameter: 2.125"
Strike Height: 2.25"
Strike Width: 1"
Deadbolt Throw Length: 1"

Shipping

Box Size: 5⅜" × 9⅜" × 2¾"
Shipping Weight: 1.5 lbs

Documentation

Our Studio short plate is a simple, yet elegant design that coordinates well with virtually any architectural style. Its shorter length is ideal for bedroom or bath, but can be remarkable in any room. Available in seven exquisite finishes and a variety of door knob choices to fit your particular look. Mix-and-Match using our HARDWARE DESIGNER to create your now unique design.

Nostalgic Warehouse Warranty
