Olympus 998 Drawer Latch Lock, Satin Chrome
$39.27
$58.61
33% Off
As low as:
- Model:
-
998Item is normally in stock and ships out within 2-3 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Olympus 998 Drawer Latch Lock, Satin Chrome
General Features
- Cabinet lock - drawer latch lock
- Field reversible into all 4 handings
- Easily rekeyable via set screw cylinder release mechanism
- Pin tumbler cylinder drilled for 5 pins
- Barrel lengths: 1" or 1-3/8" specify barrel length when ordering
- Barrel diameter: 7/8"
- Locks are handed at the factory, specify vertical or inverted when ordering
- 26D or US4 finish
- Includes999-STRIKE matching strike (stamped brass) with alignment mark for easy installation
- Packed 10 per box
- US Patent: 4,899,563; 7,874,189 B2
Available Configurations
- Drawer-vertical = 998V
- Drawer-inverted = 998I
- NOTE: This lock is field reversible. Handings can easily be changed via set screw. One lock can be changed to any of four handings: Door RH, Door LH, Drawer VH or Drawer, IH.
Keying
- National Cabinet Lock D4291(4-pin) or D4292 (5-pin) keyway
- KD/KA - 4 pin standard
- KA# 101, 103, 107, 915
- Master keyed - 5 pin standard
- Use N1 Pin Kit for rekeying
- 4-pin keyblank = KBN-4-NP (equivalent to NA14, 1069L)
- 5-pin keyblank = KBN-5-NP (equivalent to NA12, 1069LA)
Available separately
- Spacer WP24
- Trim ring TR1256
- ETS6 Through-bolt trim plate
- ETST6 Through-bolt trim plate spacer/template
Downloads
Handed locks must be ordered either LH, RH, VH or IH (see figure at left).
Non-handed locks can be ordered as either door or drawer. Door locks will work in both LH or RH applications and drawer locks will work for both vertical or inverted function.

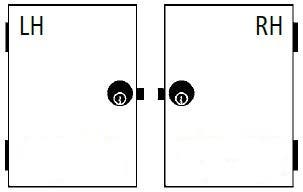

Cabinet Doors
Left-hand (LH)
Hinged on left
Right-hand (LH)
Hinged on right
Drawers
Vertical-hand (VH)
Bolt locks up
Inverted-hand (IH)
Bolt locks down
