PBB AXC-2D Alrex 2D CONCEALED Hydraulic Concealed Closer
$100.00
- Model:
-
AXC-2D
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote

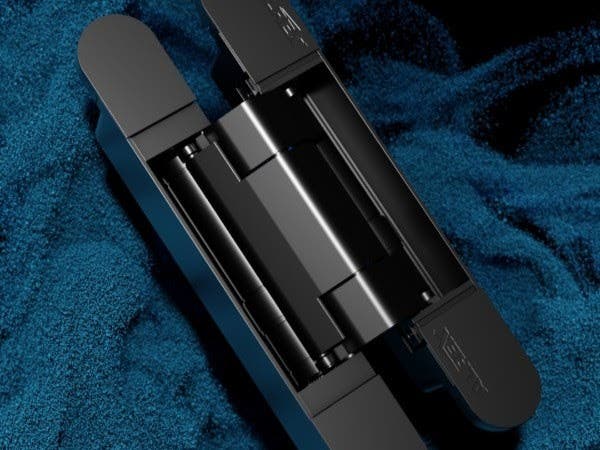

Details: PBB AXC-2D Alrex 2D CONCEALED Hydraulic Concealed Closer
Alrex's 2D Concealed Hydraulic Hinge combines durability, precision, and smooth operation.
Features
- The 2D concealed hydraulic hinge is non-handed and has a maximum
- opening of 170 °
- Hydraulic self-closing system
- Door or leaf can be adjusted up and down, and left and right, in two
- dimensions.
- 01 Product Features
- 790 lbs (360 kg)
- Load-Bearing Test
- 300,000 Cycles
- Durability Test
- Adjustable closing speed
- Exceeds load testing of 300,000 cycles
- Heavy duty castings demonstrate superior load-bearing strength,
- withstanding a load of 790 lbs while maintaining normal operation.
- 5-Year Warranty
Functions
- Universal Installation (non-handed)
- Adjustment (vertical and horizontal)
- Hydraulic Closing System
- Adjustable Closing Speed
- Door stays open anywhere past 85°
Application
- Load Capacity: 88 lbs (40kg) per hinge
- Suitable for wood, aluminum, and hollow metal doors. The number of
hinges required depends on the door's weight and size
