Pemko 185 Latching Panic Saddle Threshold, 3-1/2" W x 1" H
$40.41
As low as:
- Model:
-
185-42215294
-
Order $500 worth of Pemko Products and get 30% OFF!
Item normally ships out within 2-4 Weeks (excluding transit time).
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Pemko 185 Latching Panic Saddle Threshold, 3-1/2" W x 1" H

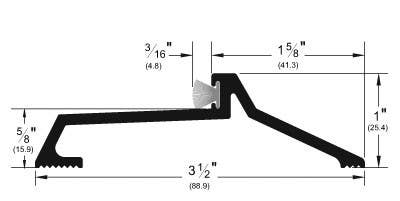

The 185 Series Latching Panic Saddle Threshold has a 3-1/2" width and allows for a 3/4" door clearance. It's designed to protect against sound, air infiltration, wind, and debris and is compatible with surface-applied vertical rod exit devices, while also acting as a door stop and seal. It includes an integrated gasket offering ThermoSeal (T), Eco-V (V), and Pile Brush (P) options. This threshold is sound, air infiltration tested, fire rated, and BHMA certified.
Features
- Used in conjunction with surface applied vertical rod exit device, or as a stop and a seal at the bottom of door
- Allow 3/4" door clearance
- Wood screw standard
- Fire rated
- Includes Pile, ThermoSeal, or Eco-V insert
- Protects against sound, wind, debris, and more
- Eco-V Insert Features:-
- Eco-friendly material
- Economical bio-based material, contains no phthalates or heavy metals
- Assists building and design teams with emissions criteria in green building rating programs
- Highly versatile, easily deployable for a variety of building applications
- Surpasses the quality and durability of traditional vinyl, resulting in a longer service life and less need for replacement
- Meets the Pemko gasketing standards for compression and tensile strength, which provides exceptional energy-saving performance
- Prevents air leakage
- Heavy metal free
- Plasticizers from renewable carbon sources, stabilizers are organic-based and zinc free
- Limited ultraviolet and weather resistance, good chemical resistance to adhesives and most mild cleaning solutions
- ThermoSeal Insert Features:-
- Sound tested; helps with acoustic performance
- Pile Brush Insert Features:-
- Provides excellent seal to keep out draft, dust, moisture, fumes, light and sound
- Reduces friction to allow for easy sliding of doors
- Eco-V Insert Certifications:-GREENGUARD Gold Certified, UL 10C positive pressure, ASTM E-283-04 (2012)
- ThermoSeal Insert Certifications:-GREENGUARD Gold Certified, UL 10C positive pressure, UL 4L10 listed, ASTM E-283-04 (2012), ASTM E 90-2009, ANSI/BHMA A156.21 Thresholds
- Pile Brush Insert Certifications:-GREENGUARD Gold Certified, UL 10C positive pressure, ASTM E-283-04 (2012)
Specifications
- Base Material
- Aluminum
- Fasteners
- WS 10 x 1.5"
- Maximum Length
- 185"
- Minimum Length
- 24"
- Overall Height
- 1"
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
