Prime Line B 548 Sliding Screen Door Roller, Bolt & Nut, 2-Pk.
$13.64
- Model:
-
B 548Item is normally in stock and ships out within 3-5 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: Prime Line B 548 Sliding Screen Door Roller, Bolt & Nut, 2-Pk.

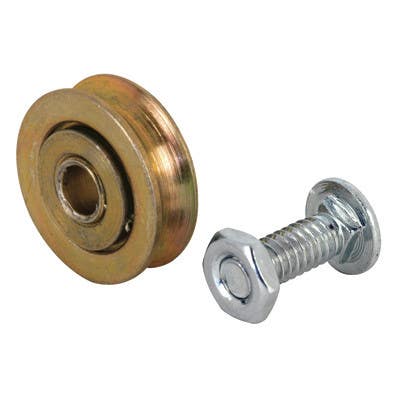

This is a roller is used on bottom mount installations. It is a 1 inch steel ball bearing roller with a 1/4 inch axle hole. The 1/4-20 × 3/4 inch carriage bolt inserts through the screen door frame and through the roller and is then secured in the bottom rail with a nut.
Features
- 1 inch steel ball bearing roller
- 5/16 inches wide
- Concave (Grooved) roller
- Includes 1/4 inch-20 × 3/4 inch carriage bolt with nut
- Used on Sliding Screen doors and some glass patio doors
- Used on bottom mount installations
Specifications
- Roller Material
- Steel - Ball Bearing
- Roller Width
- 1/4"
- Roller Edge Type
- Concave
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
