Rixson 427 Heavy Duty 3/4" Offset Hung Floor Closer
$2,109.26
$3,515.43
40% Off
- Model:
-
427-42415222
Item normally ships out within 7-10 Weeks (excluding transit time).
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote

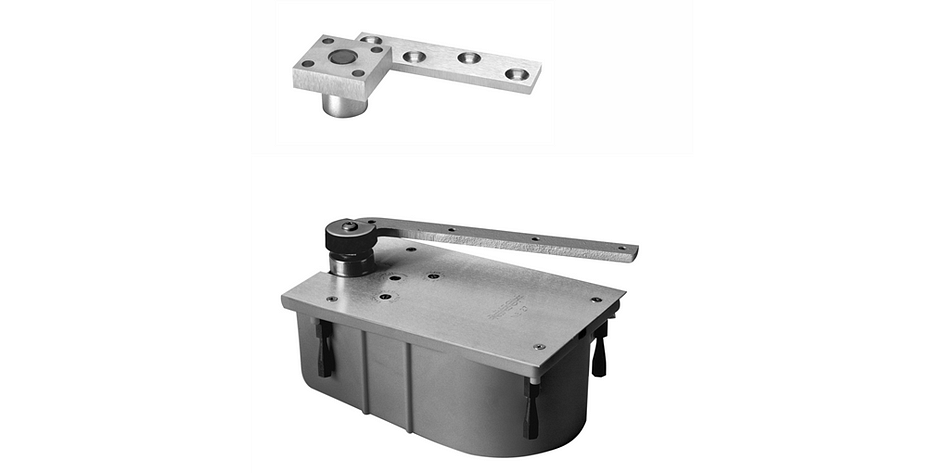

Details: Rixson 427 Heavy Duty 3/4" Offset Hung Floor Closer
The 427 is a 3/4" offset-hung floor closer designed for deep reveal door frame installation for interior or exterior doors weighing up to 250lbs.
Features
- Single acting, handed
- Exterior or interior doors
- 180 × 102 top pivot included
- 119 intermediate pivots required (order separately)
- Available non-hold open (N) or selective hold open (S) at same degree as dead stop
- Built-in positive dead stop prevents doors from swinging beyond the desired opening degree; specify 85°, 90°, 95° or 105°
- Separate independent valves for closing speed, latch speed, and backcheck
- Vertical door adjustment
- Available with floor plate or threshold installation
- Cycolac, rust-proof cement case
- Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot - each additional 30" (762mm) warrants another intermediate pivot
- Deep reveal/alcove applications
- Door width up to 4' 0" (1219mm)
- Door weight up to 250lbs.
Benefits
- Aesthetically appealing way to support and control the door
- Heavy-duty closer constructed with robust materials and internal components for long life and consistent operation
- Heavy-duty hardened one-piece steel spindle designed to provide positive dead stop
- Built-in positive dead stop prevents door from swinging beyond the desired opening degree
- Multiple valves provide precision adjustment and enhanced control
- Weight of door is supported by floor closer
- Closer has a tapered spindle and uses a unique bottom arm
Certifications
- ANSI/BHMA A156.4, Grade 1
- Buy American Act
- Certain models meet ANSI A117.1 (PH prefix)
- Trade Agreement Act (TAA)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
