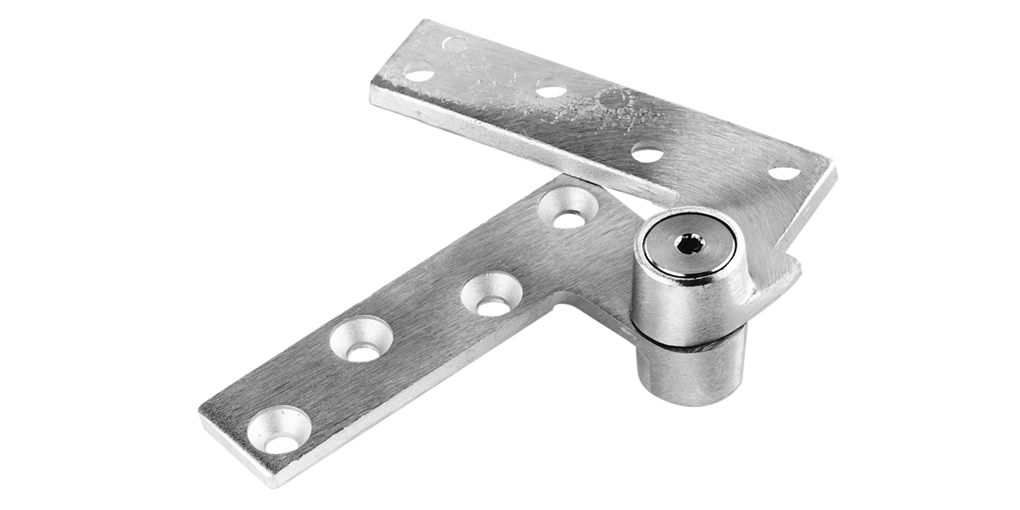

Rixson F180x1-1/2OS 1-1/2" Offset Top Pivot Set, Fire Rated
$410.87
$684.78
40% Off
- Model:
-
F180x1-1/2OS
Item normally ships out within 7-10 Weeks (excluding transit time).
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: Rixson F180x1-1/2OS 1-1/2" Offset Top Pivot Set, Fire Rated
The F180 × 1-1/2OS is a standard Fire-rated top pivot for most offset pivot sets and floor closers.
Features
- Full mortise
- Non-handed
- Standard top pivot for most offset pivot sets and floor closers
- Oil-impregnated sintered bronze bushing
- Available for fire door assemblies (ferrous material)
- 1-1/2" (38mm) offset (measured from centerline of pivot to face of door)
- Furnished with wood and machine screws
- Available with longer than standard pivot pins - increments are 1/4" (6mm), 1/2" (13mm), 3/4" (19mm) only
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
