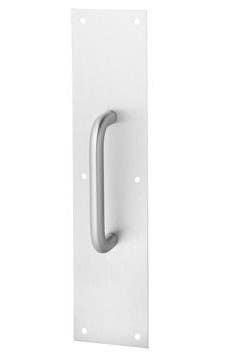

Rockwood 107 x 70 Pull Plate 8" CTC Pull Plate

Rockwood Mfg
$43.01
$53.76
20% Off
Model:
107 x 70
Item normally ships out within 2-4 Weeks (excluding transit time).
Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
printer Print
Email to a Friend
Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Details: Rockwood 107 x 70 Pull Plate 8" CTC Pull Plate

The sound six hole mounting configuration. Smooth sleek finish, the Rockwood Commercial Standard Gauge Pull Plate. Best of both worlds. Style, functionality, and years of prestigious experience. Rockwood produces their most modern products not based on 'how to,' but 'how has.' Rockwood has over half a century of research and development behind everything they do. Founded in Pennsylvania in the 1940's the American tradition of Rockwood holds strong. This pull plate comes standard with an outstanding Warranty. All Rockwood pull plates offer high levels of satisfaction. Sure to please for many years, and available in seven color finishes. A perfect match to your new or pre-existing decor.

Specification:

Material: Aluminum, Brass, Bronze, Stainless Steel Fastener: #6 × 5/8 OHSMS; 1/4 -20 × 2-1/4 Thru Bolt & Finish Washer (standard 1-3/4" door).

Option:

  • Barrier Free available in 2-1/2" clearance - use BF prefix when ordering (Bf107 × 70B).
  • Advise if door thickness is other than 1-3/4".
  • Mounting selections for standard duty 1⁄4-20 can be viewed under Mounting Details on this site.
  • Pull:¾" dia. CTC: 8" Plate: 70
  • Size: 3-1/2" × 15"
  • Weight: 2.4 lbs.
  • ANSI A156.6: J405

Warranty Information

Here

Rockwood Part No.DescriptionBurnsDonjoHagerHiawathaIvesTrimco
47-PBPush Bar422147130S1081 LPB91001741
90Combination Plate1001874121LD251---1821
91-RKWCombination Plate89---120L1456---1820
94Flush Pull459184815N1459---1115
106-RKWDoor Pull25A153E523E8102-61194-1
107Door Pull25B163G523A8102-81194-2
110-RKWDoor Pull26B194G535B8103-81195-1
111-RKWDoor Pull26C204J536B8103-01195-2
112Door Pull26D214L537B8103-21195-3
122-RKWDoor Pull20A302E559A8105-61139-1
123Door Pull20B312G5598105-81139-2
130-RKWDoor Pull14367N---8113-51102T
131-RKWDoor Pull16358N---8112-51102S
132-RKWDoor Pull---106N5 1/2 P81111117-1
137Door Pull12---5N5 Series8114-51109-1
193Door Pull194419N1458A81211134
290Corner Guard---1290185G---------
295Corner Guard---1290185G---------
308Door Edge306---181HDE-1AJ7308KE35-1
309Door Edge307---181KDE-2AJ7309KE36-1
310Door Edge308---181MDE-3C7310KE37-1
311Door Edge309---181QDE-4CJ7311KE38-1
400Wall Stop5601412230W---WS402CVX1270CXCP
403Wall Stop5651413234W---WS402CCV1270CVCP
406Wall Stop5701406232W---WS407CVXW1276CS
409Wall Stop5751407236W---WS406CCVW1276CCS
441Dome Stop5101440241F---FS4381210
442Dome Stop5201442243F---FS4381212
443Dome Stop5201443243F---FB171212
449Dome Stop Riser5251446246B---R4351210AR
455Straight Roller Stop6321488273W---RS4701245
456-RKWStraight Roller Stop6301486272W---RB4711244
467-RKWFloor Mount Door Stop------------FS18L---
470Floor Mount Door Stop535---267S---FS4481201
471Floor Mount Door Stop5351471267F---FS4441201
473Floor Mount Door Stop5361473268F---FS4461224-5
475Floor Mount Door Stop5301475255W---WS11X1205
476Floor Mount Door Stop531---256W---WS4491207
477Floor Mount Door Stop5311477256W---WS4451207
485Floor Mount Door Stop5291453258F---FS4511234
490Floor Mount Door Stop5331514326W---WS401254
491-RKWFloor Mount Door Stop5341520326F---FS401261
505-RKWDoor Stop---1501325W---611235
528Heavy Duty Hinge Pin Stop5781502BL6212---69---
555Manual Flush Bolt5901555282D1520FB4583917
557Wood Door Flush Bolt5911557283D---FB3583913
570Dust Proof Strike5451570280X382DP13910
576Coordinator75002080298D---COR7G3093
580Surface Bolt5981580275D---SB453-83922
590Roller Latch50017001442---RL30---
591Roller Latch550 X SP217021443---RL30A1559C
593Roller Latch555---318S---RL11521559BL
608-RKWDoor Silencer5001608307D---SR641229A
622Door Viewer852ULDV-1801756---698976
640Residential Flush Bolt59216401413---2613999SE
802Coat Hook600300------5713070-1
890Pocket Door Pull---PDL-100330D---9901064
891Privacy Latch---PDL-101330L---9911065
2672Door Coordinator76722021297D---COR523094B2
2842Auto Flush Bolt78421560292D---FB31P3810X3810
2942Auto Flush Bolt79421562291D---FB41P3815X3815
11147Push Bar & Straight Pull Set422 X 26C20147153D---9103-01731
106 X 70BPull Plate5325A701533E---8302-61017-2
107 X 70CPull Plate5425B711633G---8302-81017-3B
110 x 70CPull Plate5426B---34G---8303-81018-3
111 X 70CPull Plate5426C---34J---8303-01018-3B
132 X 70BPull Plate5310701036N---8311-51010-2
441HHigh Dome Stop5211447242F---FS4391211
461LKick Down Door Stop5851487271D---FS452-51220-5
630-4Surface Bolt---1630279D---543920-4
70BPush Plate537030S200D82001001-2
70EPush Plate567230S200H82001001-9
70FPush Plate577330S200K82001001-11
73CPush Plate747880S300F---1809-4
BF150Offset Door Pull29B115011G668---1191-1
BF156Offset Door Pull---115612G6588190-8---
BF157Offset Door Pull---115712J658A8190-01191-3
BF15747Push Bar & Offset Pull Set422 X 39C1157147159D---9190-01737
BF158Offset Door Pull39D115812L658B8190-21191-4
DF86Door Edge Filler Plate---EF-86336B---------
DFF4Frame Hinge Filler Plate---HF-45336L---------
DHF4BBeveled Door Hinge Filler Plate---SHF-45336F---------
K1038Kick Plate .038------198S------KA038
K1050Kick Plate .050------190S---8400KS050
RM201Door PullM39D------HG121M39D1191-4J
RM202Door Pull------23QHG122---1191-5J
RM301Door PullM26D---10LHG111M26D1195-3J
RM302Door Pull------10QHG112---1195-6J
TYPE 1Mounting Hardware11TYPE1---TYPE STDE
TYPE 5Mounting Hardware53TYPE3---TYPE NG
TYPE 6Mounting Hardware66TYPE5---TYPE LJ
VRT24Vandal Resistant Trim------------VR9001096HA
VRT26Vandal Resistant Trim------------VR900LLP1097HA
