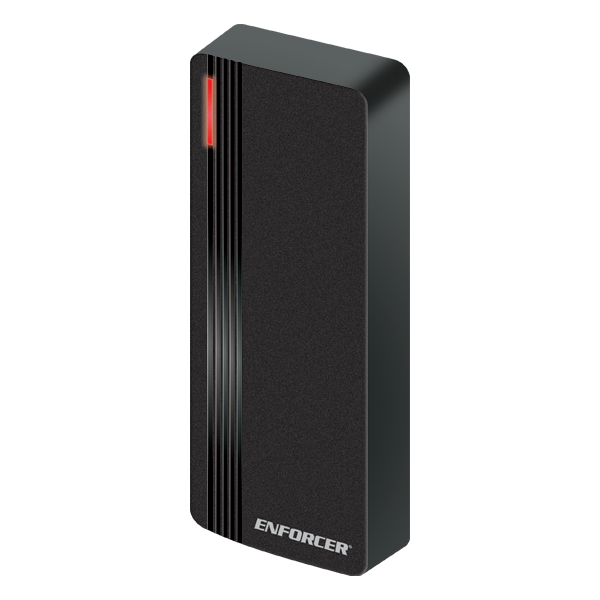

SECO-LARM PR-2123-PQ Mullion Wiegand Proximity Reader
$24.25
- Model:
-
PR-2123-PQ-42513035Item is normally in stock and ships out within 2-3 Business days (excluding transit time).If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.Request for Quote
Details: SECO-LARM PR-2123-PQ Mullion Wiegand Proximity Reader
Features
- 9-24 VDC Operation
- Low current draw - 50mA max.
- Built-in buzzer for external alarm input
- Multicolor status LED
- EM 125 kHz
- 10 User proximity cards included
- Weatherproof IP66
- Extreme cold tolerance to -40 Degree F (-40 Degree C)
- Wiegand output reader - EM 26 bits
- Sturdy black ABS plastic housing
Specifications
- Operating Voltage
- 9-24 VDC
- Current Draw - Standby
- 20mA@12VDC
- Current Draw - Active
- 50mA@12VDC (max.)
- Outputs - Wiegand
- EM - 26 bits
- Card type
- 125kHz EM
- Card read range
- 0-2" (0-5 cm)
- IP Rating
- Weatherproof IP66
- Enclosure material
- Black ABS plastic
- Operating temperature
- -40 Degree-140 Degree F (-40 Degree-60 Degree C)
- Operating humidity
- 10-98% non-condensing
- Dimensions
- 1-7/8"x4-3/4"x13/16" (48x120x20 mm)
- Weight
- 3.7-oz (105g)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
