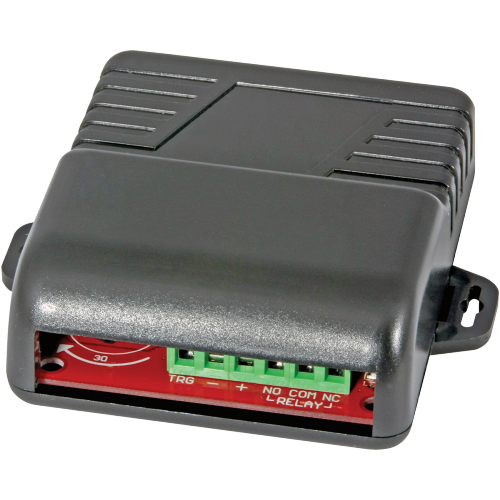

SECO-LARM SA-025Q Multi-Purpose Programmable Timer
$19.15
- Model:
-
SA-025Q
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: SECO-LARM SA-025Q Multi-Purpose Programmable Timer
The SA-025Q Programmable Timer Module is suitable for a wide range of timed security and access control operations. Auto-sensing of input voltage and DIP switches for programming make installation easy.
Features
- Timer can be set from 1 second to 60 minutes
- Can be triggered via an N.O. positive (+) trigger input signal or an N.C. negative (-) trigger device or by powering up the unit
- Relay can be programmed to activate at the start or at the end of the timing cycle
- Relay can also be set to activate for one second at the end of the timing cycle
- Relay can be programmed to pulse (flash) or be steady on
- Built-in reset function to manually reset timing cycle
- Form-C relay, contact rated 10A@24VDC/250VAC
- LED indicates relay is energized
- 12-24VDC operation (auto sensing)
- Current draw - Less than 1mA (standby) or 40mA (relay energized)
- Functions programmed via DIP switches - no jumpers to cut
Specifications
- Operating Voltage
- 12-24 VDC (auto sensing)
- Current Draw Active
- 40mA@12VDC, 80mA@24VDC
- Current Draw Standby
- <1mA@12VDC, <10mA@24VDC
- Relay contact
- 1x Form C NO/NC/COM, 10A@24VDC/250VAC
- LED Indicator
- 1x, Indicates relay is triggered
- Operating humidity
- 5-95% non-condensing
- Operating temperature
- -40 Degree -185 Degree F (-40 Degree -85 Degree C)
- Dimensions
- 2-11/16" x 3-1/4"x1-1/16" (68 x 83x27.5 mm)
- Weight
- 3.2-oz (93g)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
