SECO-LARM SA-026Q Mini Programmable Timer
$20.75
- Model:
-
SA-026Q
Item is normally in stock and ships out within 2-3 Business days (excluding transit time).
If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.
Request for Quote
Details: SECO-LARM SA-026Q Mini Programmable Timer

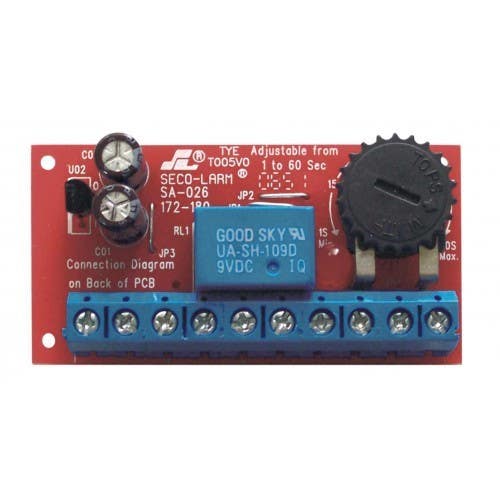

The ENFORCER SA-026Q is a low-voltage miniature timer module which operates on 12-24 VAC/VDC. It can be used to modify the activation time of a momentary contact switch for 1-180 seconds via a field-adjustable VR (variable resistor) rotary knob. It is ideal for electrical door strikes or electromagnetic locks that do not have a built-in time delay function.
Features
- Adjustable timer from 1-180 seconds via an onboard potentiometer
- Compact size: 1-3/16"x2-3/16"x5/8" (30x55x16 mm)
- Operating voltage: 12-24 VAC/VDC
- Relay output: Form C (SPDT), via terminal block
- Contact rating: 3A@24VDC
- Built-in buzzer output: (100mA@24VDC)
- Current draw at 12VDC (max.):
- Standby 5mA
- Active 50mA
- Includes double-sided foam mounting tape
Specifications
- Operating Voltage
- 12-24 VAC/VDC
- Current draw Standby
- 5mA@12VDC
- Current draw Active
- 50mA@12VDC
- Relay output
- Form C (SPDT) terminal block
- Buzzer output
- 100mA@24VDC
- Contact rating
- 3A@24VDC
- Operating humidity
- 0-90%, non-condensing
- Operating temperature
- -40 Degree -167 Degree F (-40 Degree -75 Degree C)
- Dimensions
- 1-3/16" x 2-3/16" x 5/8" (30x55x16 mm)
- Weight
- 1.4-oz (40g)
Applications
- Public Buildings & Facilities
- Commercial & Industrial Buildings
- Government & Military Facilities
- Retail & Strip Malls
- Multifamily & Mixed-Use
