SECO-LARM SM-216Q Surface-Mount Wide-Gap Magnetic Contact 2-3/4" (70mm) Gap, Closed loop, UL Listed

$6.70

Model:: SM-216Q

Item is normally in stock and ships out within 2-3 Business days (excluding transit time).

If out of stock it can take up to 2-4 weeks (excluding transit time). Specific options may or may not increase shipping time. For any reason, if there is a delay in shipping time we will notify you. Feel free to contact us if you have any concerns.

Request for Quote

Email us your RFQ sales@americanwholesaleoutlet.com
or call us for pricing 215-279-8511
or send us a request using the form below and we will respond to you by email.

Product Name

Ask A Question

Details: SECO-LARM SM-216Q Surface-Mount Wide-Gap Magnetic Contact 2-3/4" (70mm) Gap, Closed loop, UL Listed

Features

Wide-Gap surface-mount magnetic contacts
Screw mount
ABS plastic case has integrated mounting holes
Contact reed switch is SPST, deactivated rhodium on gold under-plating, for a long life
Wide 2-3/4" (70mm) gap for loose-fitting doors and windows
Spacers included
Lifetime limited warranty
Gray and Brown case

Specifications

Operating Voltage: 12-24 VDC
Loop Type: Closed loop
Electrical Configuration: N/O
Operation Gap: 2-3/4" (70mm)
Terminals: Screw-type
Color: Brown and Gray
Material - Case: High-impact ABS plastic
Contacts: Deactivated rhodium on gold under-plating
Contact Rating: 1.0A:10VDC (max), 10W (max)
Operating Temperature: -15 degree- plus 160 degree F (-25 degree-70 degree C)
Switch Cycles: 50 Million (0.1mA:5VDC)

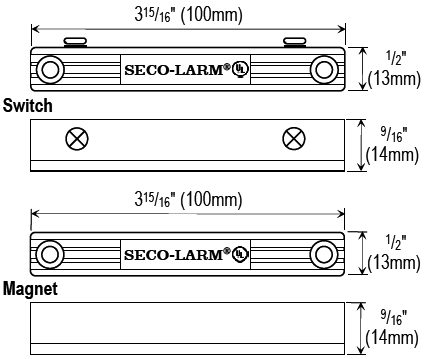

Switch Dimensions: 3-15/16" x 9/16" x 1/2" (100 x 14 x 13 mm)
Magnet Dimensions: 3-15/16" x 9/16" x 1/2" (100 x 14 x 13 mm)
Magnet Type: Alnico 5

Applications

Public Buildings & Facilities
Commercial & Industrial Buildings
Government & Military Facilities
Retail & Strip Malls
Multifamily & Mixed-Use
